High Speed Automatic Cable Tie System With Stronger Bundle Force 1.2S

High Speed Automatic Cable Tie System With Stronger Bundle Force 1.2S

  • High Light

    automatic cable tie machine


    automatic cable tie tool

  • Product Name
    Automatic Cable Tie System
  • Applications
    Bundle Wires, Pvc Sleeve, Medical Pipe Etc
  • Model
  • Bundling Diameters
    20mm - 43mm
  • Cable Ties
    Reel Cable Ties W3.6 * L200mm
  • Bundling Speed
  • Place of Origin
  • Brand Name
  • Certification
    CE and RoHS
  • Model Number
  • Minimum Order Quantity
  • Price
  • Packaging Details
    Wooden case
  • Payment Terms
  • Supply Ability

High Speed Automatic Cable Tie System With Stronger Bundle Force 1.2S

Automatic Cable Tie Reels Tool, Cable Tie System Max Bundle Diameter 31mm
Max bundle diameter 31mm. Cable tie reels 4,000pcs. A fixed gun with stronger bundle force.
More suitable for wires with PVC sleeve or rubber pipes sealed.

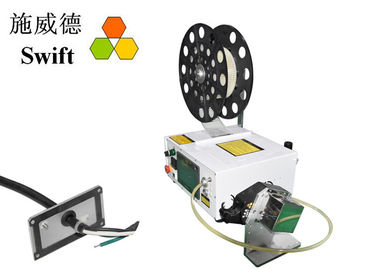

Product name Automatic cable tie tool
Cable tie reels Cable ties size W3.6 * L200mm
Cable ties quantity 4,000pcs cable ties per reel
Cable ties material Nylon 6.6
Cable tie gun/tool Tool size L291 * W240 * H149mm
Bundle speed 1.2s
Bundle diameters 20mm - 43mm
Gun power DC48V, auto transfer
Power supply AC220V, 50/60Hz; AC110V, 50/60Hz
Pneumatic pressure 5kg/cm²
Total power 1,000W

1. The cable tie gun is too heavy, its weight 4.0kg. So it is fixed in the assembly line or working table.
2. Operator could hold items by two hands.
3. Once tread the foot pedal, automatically wrap, pull and tighten cable ties, cut the cable tie tails off and collect them into a box.
4. Omron PLC and touch screen. Chinese/English display.
5. With heating system. It improves cable tie toughness when use the machine and cable ties under 15℃.
6. The machine could bind the object with different diameters without any adjustment as long as object diameter is less than 31mm.
7. The binding force is adjusted by turning a knob.

Important details

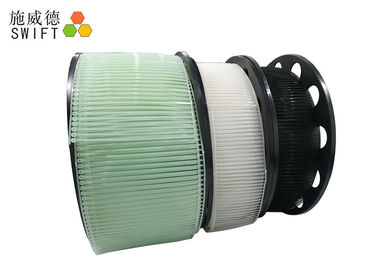

1.SWT36200FC uses reel cable ties C36200.


2.There are 4,000pcs cable ties in one reel. Operator need to load the reel cable ties into the host machine before using SWT36200FC.It is easy to install the reel cable ties.


3. If cable ties can’t be run out in a day and they would stay overnight, operator need to protect them from open air.


4. Pls use a bag to seal these nylon ties directly and you don’t need to remove the reel cable ties from the host machine.


5. The reason is that nylon cable ties are hygroscopic. They will absorb moisture and lose it too.


6. That would impact the use of cable ties and automatic cable tie tool.
Trade terms
1. 100% TT payment before ship.
2. Lead time: 10-15 business days.
3. Shipment: By DHL/FEDEX/UPS
                   By sea, sea port Shenzhen
4. Warranty: 1 year and tech support all life.
Packing details
Be packed in wooden case.
1. Where is your factory?
Our factory is located in Shenzhen, China.
2. Can it count how many cable ties that are bundled?
Yes, it could count the quantity of successful bundle cable ties.
3. What is the power supply?
We could offer AC220V, 50/60Hz or AC110V, 50/60Hz.
4. Can I select the language in the touch screen, such as English only?
Of course, you can.
