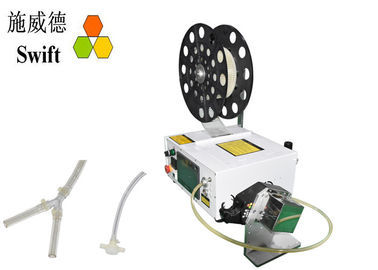

Bundle Diameter 31mm Automatic Cable Tie Tool Using Automatic Cable Tie Reel 4,000pcs Pack
Automatic cable tie tool uses automatic cable tie reel, ties size W3.6mm * L150mm. Bundle one cable tie takes about 1.2S.
Cable tie gun advantages
1. Cable tie gun could be fixed in the table or assembly line.
2. The binding forces are adjustable by turning a knob.
3. Once tread the pedal, it would start to work, wrap items with cable tie, tighten and cut cable ties off.
4. The gun jaws can adapt the different diameters wire harness/tubes/pipes within the max bundle diameter ø31mm.
5. The bundle effect is better than the handheld cable tie gun.
Other features
1. The whole machine is smaller than other types because there is no vibration bowl.
2. Big touch screen: dual languages display, English and Chinese. Other languages are available.
3. There is temperature control system. You can adjust the heating temperature.
4. There is the alarm function.
5. The machine uses automatic cable tie reel, 4,000pcs cable ties/reel.
Machine parameters
| Model | SWT36150FC |
| Description | Automatic cable tie tool, using automatic cable tie reel, 4,000pcs/reel. |
| Application | Automatically binding objects with cable ties - tightly and quickly. |
| Cable tie spec | W3.6 * L150mm |
| Cable tie features | Straight without deformation, no tilt angle, tensile strength 14kg |
| Min bundle diameter | Ø2.0mm/ |
| Max bundle diameter for wire | Ø31.0mm/1.22nch |
| Max bundle diameter for tube | Ø30.0mm/1.18inch |
| The bundle speed | 1.0S |
| Host machine size | L710 * W470 * H230mm |
| Cable tie gun size | L291 * W240 * H149mm |
| Electric power | AC220V, 50/60Hz, Euro plug |
| Pneumatic pressure | 5kg/cm² |
Applications
Wire harness, Plastic tubes/pipes, PCB wires, Engine harness binding and so on.
Trade terms
| Payment | 70% TT deposit before production, 30% TT balance before shipment |
| Lead time | 10 – 15 business days after receive payment |
| Shipment | By sea, it takes about 30 - 40days to the destination. |
| By DHL/UPS/TNT, it takes about 5 - 7days | |
| By air |
What we want to know from you?
1. Cable ties type that you are using now. Offering picture and size is nice.
2. Your products. Offering picture is good.
3. The excess length after cut cable tie off.
Our services
Your inquiry will be replied within 8hours.
We are a professional manufacturer. The competitive price would be offered to you.
All machines have a year warranty and tech support forever.
The testing room.
Our services cover all industries and reach all parts of the world.
