Ergonomic Automatic Zip Tie Machine / Lightweight Auto Bundling Machine

Ergonomic Automatic Zip Tie Machine / Lightweight Auto Bundling Machine

  • High Light

    automatic cable tie machine

    ,

    automatic zip tie machine

  • Product Name
    Automatic Cable Tie System
  • Model
    SWT25100HC
  • Function
    Automatic Bundle Wires, Tubes With Cable Tie
  • Cable Ties
    W2.5 * L100mm (reel)
  • Bundling Dia.
    Ø3mm - Ø18mm
  • Tie Model
    C25100
  • Place of Origin
    China
  • Brand Name
    SWIFT
  • Certification
    CE
  • Model Number
    SWT25100HC
  • Minimum Order Quantity
    1pcs
  • Price
    Negotiation
  • Packaging Details
    wooden case
  • Delivery Time
    10 - 15days
  • Payment Terms
    T/T
  • Supply Ability
    100pcs/month

Ergonomic Automatic Zip Tie Machine / Lightweight Auto Bundling Machine

Electric Power AC220V Automatic Cable Tie Applicator Using Cable Ties Reel

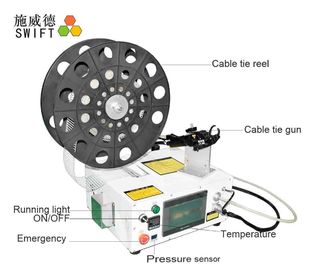

The machine SWT25100HC use automatic cable ties reel. There is a handheld cable tie gun. The electric power is AC220V, 50/60Hz and the pneumatic pressure is 5kg/cm².



Why choose SWIFT automatic cable tie system?



The table is about the differences between SWIFT cable tie guns and other brands.



Differences SWIFT available or not Other brands
1. Automatic adapt different diameters items within max diameters Yes No, operators need to adjust the machine to adapt different items.
2. The binding forces, 4settings adjustable. Yes, there are 2kg, 4kg, 6kg and 8kg tension forces adjustable. No, they don’t have this function.
3. With heating function Yes, you could adjust the heating temperature. No, there is no heading function.
4. Automatic error detection and dealing with it. Yes. No.
5. PLC control and big touch screen Yes, it is easy to manage the data. Small touch screen or None



Production parameters



1 Automatic cable tie system using cable ties reel – SWT25100HC
2 Description

1. Automatically wrap, pull and tighten cable ties, cut the excess zip ties off and collect them into a box.

2. Using cable ties reel.

3. With a handheld cable tie gun.

3 Cable tie type Cable ties reel, C25100
4 Cable tie size width 2.5mm
Length 100mm
Tie thick 1.1mm
5 Tensile strength 8kg/18LB
6 Bundling diameter Ø3 –ø18mm
7 Operation speed 1.0S to bundle cable tie and collect the excess zip ties into a box.
8

Power supply



AC220, 50/60Hz(AC110V, 50/60Hz available)
9 Pneumatic pressure 5 Kg/cm²
10 Tension force Adjustable



Product advantages

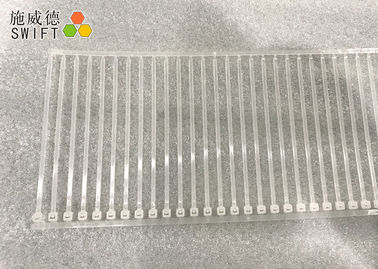

1. Using cable ties reel, 5,000pcs/reel.



2. The cable tie gun could be used as a handheld type or fixing type by purchasing an extra alloy support.



3. The binding forces are adjusted by turning a knob.



4. With temperature control system.



5. It could be applied to for completely automation line by designing a robot.



6. Ergonomic, lightweight cable tie gun is useful to reduce operator fatigue.



7. Automatic error detection and dealing with it. The machine could find and deal with the error bundling, then restart.



8. The bundling speed is adjustable.



Packing details



Packing size: L66 * W59 * H58cm/wooden case, G. W.: 52KG; N.W.: 35KG



Applications



Wire harness of Electronics industry, Automotive industry, Solar energy sector



Food industry: bags sealing, the food lables fixing.



Trade terms



1. Payment term 100%TT payment before shipment.
2. Lead time 10 -15working days after receive payment.
3.Shipment ways By sea, by air, by DHL/UPS.
4.Price EXW or FOB
5.Sea port Shenzhen
