18lb Zip Ties Installation Automatic Cable Tie Tool With Power Supply And Cords

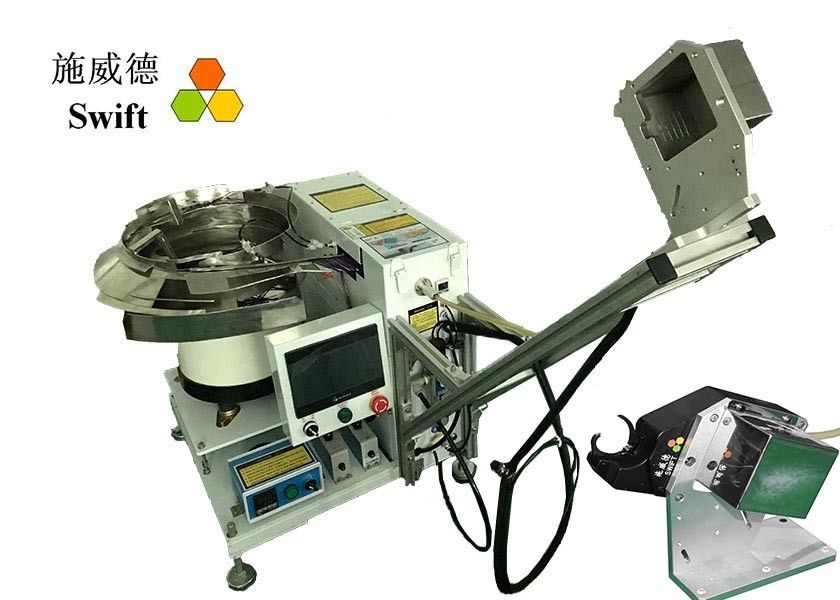

Automatic cable tie tool SWT25100F is used to quickly and consistently bundle cable ties or zip ties. The zip ties are width 2.5mm and length 100mm. Every machine is with AC220V power supply and a Euro cord.
Why you would choose SWIFT automatic cable tie tool?
You must want to have the best machine and service to support you. Swift can do it for you. You can get these when to contact sales team, as below:
1. Choose machine type.
Swift has three kinds of machines for your choose, such as a handheld cable tie gun, a fixed cable tie gun, a fixed cable tie gun for motor coil stator or small room operation. According to your products, we would give you suggestions on the type.
2. Test trial service.
Domestic clients could test machine for 1month before 20% balance payment.
Other country clients could send their products and cable ties to our factory. We would test them if they could be used in our machine. The test videos would offer to you.
3. OEM/ODM is available.
Swift has 18years history in automation and 6years experiences in automatic cable tie tool. We are a professional manufactures and leader in this industry. We have a strong R and D department. Welcome to customize machine!
SWT25100F base data
| Product name | Automatic cable tie tool |
| Model | SWT25100F |
| CE compliant | Yes |
| Cable tie gun | A fixed cable tie gun that could automatic wrap, tighten and cut off cable ties |
| Operation speed | 0.9S |
| Host machine | Sort bulk cable ties and feed them into cable tie gun |
| Compatible Cable Tie | T25100 |
| Cable tie width | 2.5mm |
| Cable tie length | 100mm |
| Cable tie thickness | 1.1mm |
| Cable tie tensile strength | 18lb |
| Bundle ø Max | 18mm for wires; 16mm for tube |
| Bundle ø Min | 2mm |
| Pneumatic pressure | 5kg/cm² |
| Power supply | AC220 - 240V, 50/60Hz, Euro plug |
Features
1. Fast: Cable ties are installed quickly with one foot pedal, increasing productivity while decreasing labor costs.
2. The bundling speed is 0.9S.
3. Cable tie gun could be fixed in the bench or near assembly line. So worker could catch products by two hands.
4. The tension forces are accurate and could be adjusted by turn a knob. It is easy to operate.
5. Using loose cable ties.
6. Maintenance free for 5millions cycles.
7. Reliable: Every machine would be tested at least 2,000 cycle times to guarantee the reliable and quality. It performs extremely consistently, without interruption to workflow then is shipped.
Packing details
| SWT25100F Packing Details | ||
| Export wooden case | 2pcs | |
| The host machine / wooden case | G.W./kg | 101kg |
| Packing Size/cm | L76 * W73 * H82cm | |
| The vibration bowl / wooden case | G.W./kg | 67kg |
| Packing Size/cm | L67 * W55 * H91cm | |
| Total G.W. | 168kg( estimated) | |
Our products are sold all over the world, you can rest assured.
