| Brand Name: | Swift |
| Model Number: | SWT36120H |
| MOQ: | 1pcs |
| Price: | Negotiation |
| Delivery Time: | 5-10working days |
| Payment Terms: | T/T |

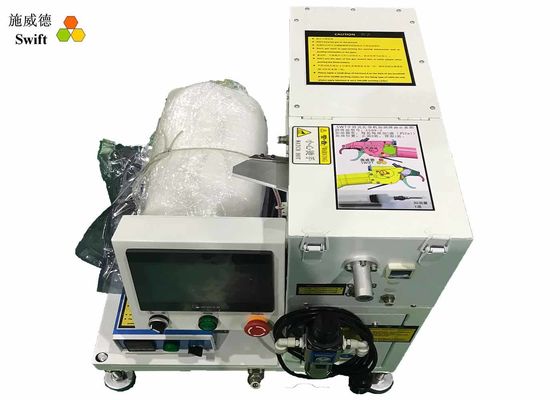

Fast Bundling Electric Cable Tie Gun With Automatic Threading Zip Tie 4.7Inch
SWT36120H is one of electric cable tie guns. It can automatically thread, tighten and cut off cable ties in 0.9S. The bundling speed is fast.
SWT36120H components
| Model | SWT36120H the electric cable tie guns |
| Components | Description |
| 1. a handheld gun | Automatically threading, tightening and cutting off zip tie. And be used as a fixed gun in worktop too. |

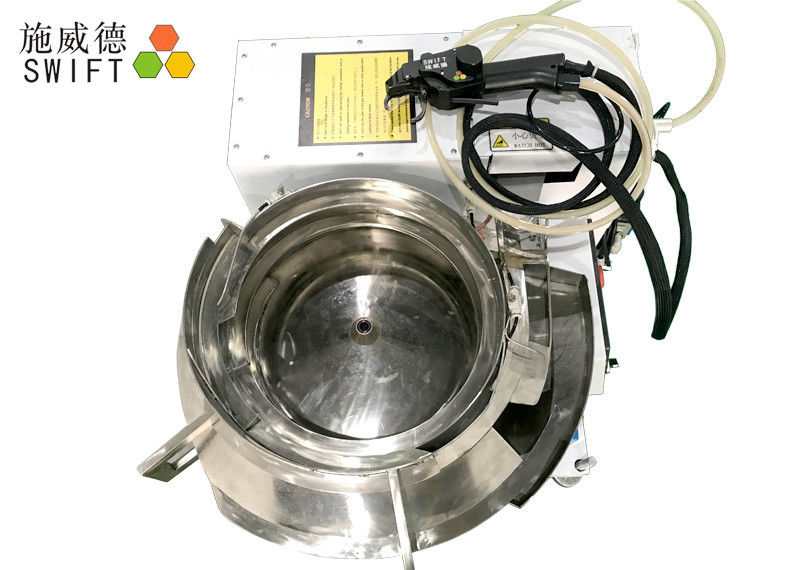

| 2. A vibration bowl | Sort materials nylon cable ties |
| 3. PLC and touch screen | Logic control, parameter settings |
| 4. Temperature control system | It can protect the cable ties toughness especial in low temperatures. |
| 5. Distribution system | Convey cable ties one by one |
| 6. Others | Data hose, feeding hose, filter and so on. |
SWT36120 base data
| Description | Electric Cable Tie Gun | ||
| Brand | SWIFT | ||
| Model | SWT36120H | ||
| Features/advantages |
1. Fast bundling cable ties, only 0.9S per cable tie! 2. Without hands threading, pulling and tightening, cutting, the machine would do these actions. 3. With a clean cut without sharp cable tie protrusions. 4. With a completely flash cut. 5. The length between the cut and tie head is adjustable. 6. The tension force is adjustable by turn the tension wheel in handheld cable tie gun. |
||
| Cable ties details | Ties type | Bulk cable ties | |
| Tie model | T36120 | ||
| Tie width | 3.6mm | ||
| Tie length | 120mm/4.7inch | ||
| Tie thickness | 1.2mm | ||
| Tensile strength | 27lbs | ||
| Quantity/bags | 1,000pcs | ||
| Usage/per time in vibration bowl | 210pcs enough | ||
| Max bundling Dia. for wire | 23mm | ||
| Max bundling Dia. for tube | 22mm | ||
| Min bundling Dia. | 3mm | ||
| Bundling speed | 0.9S | ||
| Cable tie gun details | Power | DC24V auto transferred | |
| Size | L256 * W10 8* T78mm | ||
| Tension forces | Adjustable | ||
| Power supply | AC220V, 50/60Hz; AC110V, 50/60Hz | ||
| Pneumatic pressure | 5kg/cm² | ||
| Max Power | 1,000W | ||
| Certificates | CE, RoHS | ||
SWT36120 advantages
1. When to push the trigger, cable tie gun would do these actions, includes threading cable tie, tightening and cut.
2. Count the quantity cable ties which are bound tightly.
3. Using bulk cable ties not cable ties strap..
4. Collect the excess tail into a simple box or a tin with pump automatically.
5. Touch screen with dual languages
6. The binding force is adjustable and there are 5settings.
7. It is no problem to apply to automation line(customize).
FAQ
1. Do you accept ODM orders?
Yes, we do. We have a stronger R and D department. Our engineers worked as weapon designers , got trained in Switzerland, Germany etc. They have rich experience in automation.
2. What is MOQ?
1pcs.
3. Can I use other brand cable ties in this machine?
No, it is better to use our cable ties. If you want to use other brand zip ties, pls inform us by email.
4. Are you a manufacture?
Yes, we are.
Video
Video
Video
|
|
