220V SWT36100M Auto Plastic Tie Machine To Bundle Motor Coil With CE
How does the machine work?

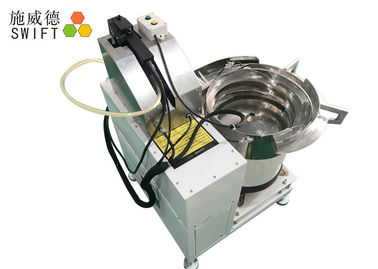

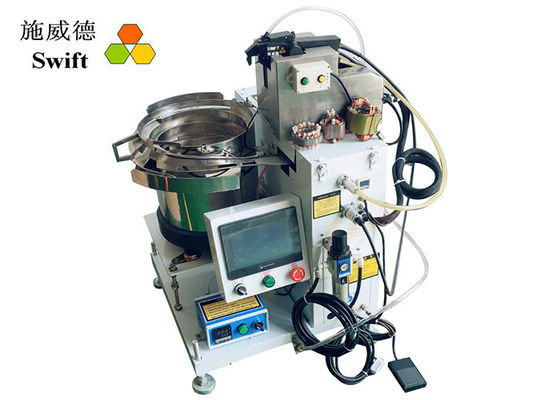

The machine consists of the host machine, the vibration bowl and the gun. The bowl is set on the host. The gun is connected to the host by the feeding hose and the data hose. When power on, touch the 'AUTO', tread the pedal, it will automatically bundle the motor coil. You spend about 1.2S to bind one.
The first automatic cable tie machine in the world for motor coil bundling or for cable tie binding in small room!
Product specifications
| Model | SWT36100M |
| Cable tie size | W3.6 * L100mm |
| Min banding Dia. | ø9 mm |
| Max banding dia. for wire | ø13 mm |
| Operation speed | 1.0S /pcs cable tie |
| Electrical power | Host: AC 220V 50/60 Hz |
| Tool: DC 24V(automatic switching) | |
| Pneumatic pressure | 5 Kg/ cm² |
| Power | 1000W |
| Weight | Host:146 kg ( With 4 wheels, move easily ) |
| Gun: 6kg | |
| Size | Host: L690 * 670 * 670mm |
| Gun: L331 * W282 * H189mm | |
| Certificate | CE & RoHS |
Features:
1. The disordered bulk cable ties flow into random vibration plate, cable ties piped through to tips.
2. Pull the trigger, automatic feeding, tape, tightening, cutting, polishing wastes and all other actions;
3. 1.0 seconds to complete all actions including feeding, tape, tightening, cutting, polishing wastes, also including auxiliary time, the whole cycle a total of about 1.3 seconds.A machine can replace 7-8 workers. It can save over 20 million of wage costs in a year.
4. PLC + Touch Panel controlling, easily to manage.
5. Be suitable for motor coil bundling which has been winded on stator core in advance, it is also suitable for bundling those objects which has small room for the cable tie to go through.
6. Automatic detect the failure, the machine would stop immediately if there is any malfunction, and automatic deal with the failed cable tie, and automatic restart the machine.
Operations
1 . Take 200 - 300pcs bulk cable ties into the vibration at random.
2 . Let the motor coil under the gun claw and tread the pedal. It will automatically bundle it.
3 . No cable ties left in the vibration overnight. Or it is easy to make them deformed.
4 . If you are not the technical engineer, don't operate the "manual".
5 . If the binding force is small, you can turn the knob to adjust it.
Advantages
1. Could be fixed as desktop type; and could be applied to full automation line.
2. Be suitable for motor coil bundling which has been winded on stator core in advance, it is also suitable for bundling those objects which has small room for the cable tie to go through.
3. Automatic detect the failure that means the machine would stop immediately if there is any malfunction, and automatic deal with the failed cable tie, and automatic restart the machine.
4.There has the function of detecting cable tie jam, if there is any cable tie jam in the Tool or in the hose, the machine would stop running and automatic clean the jammed cable tie, and then restart automatically.
5. The machine count quantity only after the operation succeeded.
Why choose Shenzhen Swift Automation technology CO., Ltd?
We are a professional manufacturer of automatic cable tie system in the world.
The machine is our patent product and we have strong R & D team to improve the quality and service.
Since 2000, we always devote to researching and developing the machine. We have perfect process to test the machine quality and offer the tech support forever.
Related products
| Model | SWT25120M | SWT36100M | SWT36120M |
| Cable tie size | W2.5 * 120mm | W3.6 * L100mm | W3.6 * L120mm |
| Min banding Dia. | ø9 mm | ø9 mm | ø11 mm |
| Max banding dia. for wire | ø13 mm | ø13 mm | ø15 mm |
| Operation speed | 1.2s | 1.0s | 1.2s |
