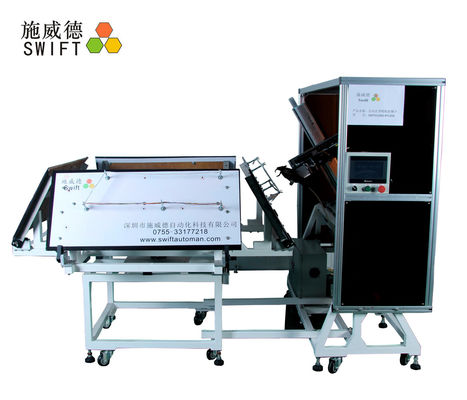

AC220V 50/60Hz Robotic Full Auto Cable Tie Machine Easy Moving With 4 Wheels

AC220V 50/60Hz Robotic Full Auto Cable Tie Machine Easy Moving With 4 Wheels

  • High Light

    automatic cable tie system

    ,

    automatic zip tie machine

  • Product Name
    Robotic Full Auto Cable Tie Machine
  • Application
    Banding Cable Wire/plastic Tube Automatically
  • Size Of Cable Size
    2.5 * 100mm
  • Total Size
    L2400 * W1925 * H1620mm ( With 4wheels )
  • Rotation Table Size
    L1600 * W1600 * H1000mm
  • Fixture Board Size
    L1000*H450
  • Place of Origin
    China
  • Brand Name
    Swift
  • Certification
    CE
  • Model Number
    SWT55-120R
  • Minimum Order Quantity
    1 pcs
  • Price
    Negotiation
  • Packaging Details
    1pcs / wooden case, G.W. : 250kg
  • Delivery Time
    15 - 20days
  • Payment Terms
    T/T
  • Supply Ability
    100pcs/month

AC220V 50/60Hz Robotic Full Auto Cable Tie Machine Easy Moving With 4 Wheels

AC220V 50/60Hz Robotic Full Auto Cable Tie Machine Easy Moving With 4 Wheels



You can fix the tool head on the robot arm for full automation. The size of the fixture could be customized design. The standard fixture is 1.2m width*0.55m height.



Product specifications



Product Name full-auto cable tie machine Application



Banding cable wire/plastic tube automatically





Size Of cable size



2.5*100mm Tool heads 1-3pcs
Total size



L2400*W1925*H1620mm(with 4wheels)



Power AC220V, 50/60Hz



Rotation Table Size



L1600*W1600*H1000mm

Max banding Dia. for tube Ø16mm
Fixture Board Size



L1000*W450mm ( Max 1100*500mm )



Pneumatic pressure 5kg / cm2



 Advantages



1. 4 axes, X,Y,Z + Rotation;



2. 1 robot can drive 1-3 sets of Auto Cable Tie Tools, when apply 3 pcs of cable tie Tools to 1 robot, there would be no rotation function;



3. The rotation table has the self-lock function, when the robot complete the set number of cable tie bundling, the robot would unlock automatically, and then rotate the rotation table manually to the approximate position, pedal the foot pedal switch, the robot would lock the table automatically;



4. Automatically checking every cable tie bundling process, if failed, the robot would deal with the issue and repeat cable tie bundling;



5. Automatically checking whether the rotation table is locked correctly;



6. Simplified Single axis robot is available for those harness with 1-3 pieces of cable ties, the idea is combining the Connecting testing and Cable Tie bundling process together, take use of the electrical signal of connecting to drive the cable tie Tool to bundle the cable tie automatically.



7. By enter the number to program, and allow multi-programs to be saved for different product change over;



8. One tool has two working fields. Two tools have four working fields and three tools have 6 working fields.



Package info



3pcs/wooden cases
