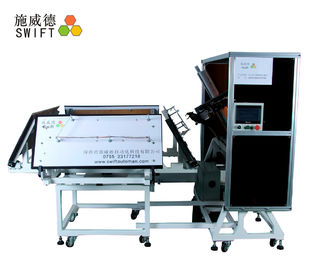

Customized Robotic Full Auto Cable Tie Machine Easy Operated For Automation Line
Customized Full automatic cable tie system is welcomed. Stronger R and D department is our strength. Good quality cable tie machine would make you satisfied.
Easy to operate, ordinary workers, simple practice, you can skilled operation.
Humanized design, the table according to the human body structure mechanics design, greatly reduce the staff fatigue strength, improve work efficiency.
Easy to maintain, ordinary workers, simple training, you can daily maintenance, conversion mode, easy maintenance adjustment.
Features
1. 4 axes, X, Y, Z + Rotation.
2. X/Y/Z/R Travel: X:1200; Y:550; Z:40; R: 0 - 180°
2. The cable tie gun is fixed in the robot. They move together.
3. The fixture board could be customized. The standard size is L1500 * H600mm.
4. One tool has two working fields, transparent cover for each working field. The cover would actuate a switch when closing.
5. Operator uploads the wires and tests the connecting at one of the working fields, the robot and the tool work at another working field.
SWT55-120R technical parameters
| 1 | Item | Description | Value |
| Brand | SWIFT | None | |
| 2 | Model | SWT55-120R | None |
| Be suitable for automation line | None | ||
| 3 | 4axes | X/Y/Z/R Travel | X:1200; Y:550; Z:40; R: 0 - 180° |
|
4
|
Working zone numbers | 2* cable tie gun number | 2 |
|
5
|
Cable tie gun | Cable tie gun number | 1 |
| 6 | Fixture board | Size | L1500 * H600mm |
| 7 | Cable ties | Model | C36200 |
| Width | 3.6mm | ||
| Length | 200mm | ||
| Thicker | 1.2mm | ||
|
8
|
Operation speed | Bundle one cable tie | 1.3S |
| 9 |
Max banding Dia.
|
For wire | Ø 42mm |
| For tube | Ø 40mm | ||
| 10 | Min banding Dia. | For tube / wire | Ø 20mm |
| 11 | The feeding hose | Length | 2.5m |
| 12 | The bending forces | Adjustable | |
| 13 | Voltage | AC220V, 50 / 60Hz | |
| Euro plug | |||
| 14 | The gun V. | DC24V (switch automatically) | |
Trade terms
| Trade terms | |
| Payment | 100%TT payment before shipment |
| Price | EXW, FOB |
| Sea port | Shenzhen |
| Warranty | 12month and tech support all life |
FAQ
1. Can you customize 6axes for us?
Yes, we can. 4axes, 6axes are available.
2. What is the max bundling diameter?
42mm. If the item diameter is more than 42mm, our machine can’t bundle it.
