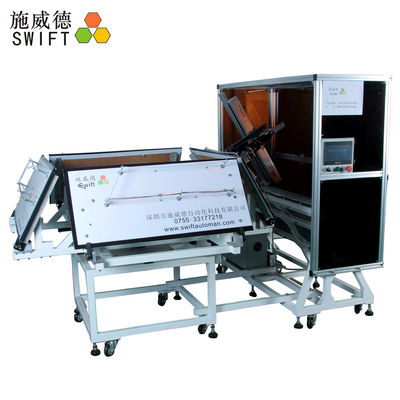

SWT60150R Robotic Full Auto Cable Tie Machine Using Cable Ties 2.5 * 100mm

SWT60150R Robotic Full Auto Cable Tie Machine Using Cable Ties 2.5 * 100mm

  • High Light

    automatic cable tie system

    ,

    automatic wire tie machine

  • Product Name
    Full-auto Cable Tie Machine
  • Application
    Banding Cable Wire/plastic Tube Automatically
  • Size Of Cable Size
    2.5 * 100mm
  • Rotation Table Size
    2 X Number Of Tool
  • Fixture Board Size
    L1500 * W600mm
  • Number Or Tools
    1 - 2pcs
  • Place of Origin
    China
  • Brand Name
    Swift
  • Certification
    CE
  • Model Number
    SWT60150R
  • Minimum Order Quantity
    1 pcs
  • Price
    Negotiation
  • Packaging Details
    1pcs/wooden case
  • Delivery Time
    15 - 20days
  • Payment Terms
    T/T
  • Supply Ability
    100pcs/month

SWT60150R Robotic Full Auto Cable Tie Machine Using Cable Ties 2.5 * 100mm

SWT60150R Robotic Full Auto Cable Tie Machine Using Cable Ties 2.5 * 100mm

You can fix the tool head on the robot arm for automatic assemble line. Customized is welcomed.
The standard fixture is L1500*W600mm

Product specifications


Product Name Robot auto cable tie machine Application


Banding cable wire/plastic tube automatically


Size Of cable size 2.5 * 100mm Tool heads


1 - 2pcs


Total size


L1700*W800*H1500mm


Power AC220V, 50/60Hz
Fixture Board Size


L1500*W600mm


Max banding Dia. for tube Ø16mm
X/Y/Z/R Travel


X: 1200; Y:550; Z:40; R:0~180°


Pneumatic pressure 5kg/cm2


Automatic cable tie tool specifications


Automatic cable tie tool
Using nylon cable ties T25100
Cable tie gun size L250 * W102 * T64mm
Max binding diameter 18mm
Min binding diameter 2mm
Operation speed 0.7Seconds
Voltage AC220V, 50/60Hz
Pneumatic pressure 5kg/cm²


 Advantages

1. 4 axes, X,Y,Z + Rotation;

2. 1 robot can drive 1-3 sets of Auto Cable Tie Tools, when apply 3 pcs of cable tie Tools to 1 robot, there would be no rotation function;

3. Automatically checking every cable tie bundling process, if failed, the robot would deal with the issue and repeat cable tie bundling;

4. Automatically checking whether the rotation table is locked correctly;

5. Simplified Single axis robot is available for those harness with 1-3 pieces of cable ties, the idea is combining the Connecting testing and Cable Tie bundling process together, take use of the electrical signal of connecting to drive the cable tie Tool to bundle the cable tie automatically.

6. Temperature Controlling System, and Waste Material Collection System are optional devices for choosing.

7. Automatically checking every cable tie bundling process, if failed, the robot would deal with the issue and repeat cable tie bundling.

8. By enter the number to program, and allow multi-programs to be saved for different product change over.



9. The binding forces are adjustable.



Why you choose Swift automation?



1. We are a professional manufacturer of automatic cable tie tools. Automatic cable tie tool using loose cable ties is invented by our company. We have more than 50 patents.



2. Before 2012, we focus on full automation machines. And our engineers have ever designed many full-auto lines with Euro engineers.



3. We have designed lots of full-auto cable tie tool with robot for clients.


Package info

3pcs/wooden case

Application

All kinds of automatic assembly line.

Wiring harness.

FAQ

1. What kind of cable ties does the machine use?

It uses bulk cable ties T25100, the width 2.5mm and the length 100mm.

2. Can you offer free cable ties to me?

Yes, we would send about 200pcs to you. You would find our cable ties quality is better than others.

3. What is payment term?

Generally we accepts 100% TT payment before shipment.
