Automatic Bundling Wire Tie Tool PLC Control System 2 -22mm Binding Diameter

Automatic Bundling Wire Tie Tool PLC Control System 2 -22mm Binding Diameter

  • High Light

    cable tie tension tool


    bundle wrapping machine

  • Product Name
    Wire Tie Tool For Automatic Bundling
  • Model
  • Tie Width
  • Tie Length
    120mm (4.7inch)
  • Binding Dia
    2 -22mm
  • Power Supply
  • Place of Origin
    Shenzhen, China
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
  • Price
  • Packaging Details
    wooden cases
  • Delivery Time
  • Payment Terms
  • Supply Ability
    100pcs / month

Automatic Bundling Wire Tie Tool PLC Control System 2 -22mm Binding Diameter

Bundling Diameter Up to 22mm Cable Tie Clamping Tools In Fast Bundling Speed


SWT25120F cable tie clamping tool has many functions that the traditional cable tie tools don’t have. For example, operator’s hands are free; the fast bundling speed, 0.8S bundle one cable tie.

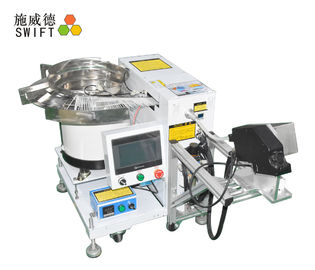

SWT25120F machine components


1. A tool gun that would be fixed in the bench or desk.


2. A vibration bowl: sort cable ties/hose ties.


3. Host and frame: support the bowl, the touch screen and others.


4. PLC control system and touch screen: Chinese and English display, easy to manage.


5. Temperature control system and a small straight vibrating plate: after set the temperature, it would heat the plate.


6. Wires, switch, connectors: signal transferring.


7. Distribution system, pneumatic system and others.


SWT25120F advantages


1. Tread foot pedal, automatically treading, pulling and tightening, cutting off cable ties.


2. The whole operations take only 1S.


3. Clean cutting edge prevents dangerously sharp cable tie ends.


4. The length of the excess edge can be adjustable.


SWT25120F base data


No. 1 Description Cable tie clamping tool(automatic threading and tightening cable ties)
2 Brand SWIFT
3 Model SWT25100H

1. Use loose cable ties, W2.5 * L100mm.

2. Operator can use two hands to hold the items.

3. Automatically binding cable ties tightly. Hands don’t need to touch nylon wire ties.

4. Easy to operate. Tread foot pedal, the machine would begin to bundle.

5. The binding forces are adjustable.

6. It takes 1.0S to bundle one cable tie.

7. One machine can replace 3workers.

4 Cable ties details Ties type Bulk cable ties
Tie model T25120 (Same size cable ties can be used in this machine. Suggest use our cable ties. )
Tie width 2.5mm
Tie length 120mm,4.7inch
Tie thickness 1.1mm
Tensile strength 8kg
Quantity/bags 1,000pcs
5 Usage/per time in vibration bowl 240pcs enough
6 Max bundling Dia. for wire 22mm
7 Max bundling Dia. for tube 20mm
8 Min bundling Dia. 2mm
9 Bundling speed 1.0S
10 Cable tie gun details Power DC48V auto switch
Size L25 * W24 * T15cm
Tension forces Adjustable by turn knob
11 Power supply AC110V/220V, 50/60Hz
12 Pneumatic pressure 5kg/cm²
13 Max Power 1,000W
14 Certificates CE, RoHS
15 Packing details Host machine/wooden case Packing size L77 * W74 * H86mm
N.W./kg 81
G.W./kg 101kg
Vibration bowl/wooden case Packing size L72 * W59 * H94mm
N.W./kg 56kg
G.W./kg 66kg
Total wooden cases 2pcs
Total N.W./kg 137kg
Total G.W./kg 167kg


Trading details


1. 70% TT deposit before production and 30% balance payment before ship.


2. Price: EXW, Fob Shenzhen, CIF etc.


3. Lead time: normally 10 – 15days.


4. Shipment ways: by sea, by air.
