Reel Cable Tie Installation Tool With PLC Control System And Touch Panel

Reel Cable Tie Installation Tool With PLC Control System And Touch Panel

  • High Light

    cable tie installation tool

    ,

    bundle wrapping machine

  • Product Name
    Wire Tie Tool Automatic Bundling
  • Brand
    SWIFT
  • Model
    SWT36150HC
  • Cable Ties
    W3.6mm * L150mm
  • Tie Model
    C36150
  • Bundling Dia.
    Ø3mm - Ø31mm
  • Place of Origin
    Shenzhen, China
  • Brand Name
    Swift
  • Certification
    CE
  • Model Number
    SWT36150HC
  • Minimum Order Quantity
    1pcs
  • Price
    Negotiation
  • Packaging Details
    wooden cases
  • Delivery Time
    10days
  • Payment Terms
    70% TT before production and 30% TT payment before ship
  • Supply Ability
    100pcs/month

Reel Cable Tie Installation Tool With PLC Control System And Touch Panel

Reel Cable Ties 150mm Length Zip Tie Gun Automatic Bundle High Speed

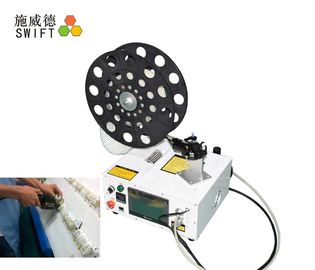

SWT36150HC zip tie gun is a tool that could bundle wire harness/plastic tubes/connectors with reel cable ties automatically. It could bundle 4,000pcs a reel continuously.



Features



1. Load reel cable ties in the host machine.



2. There are 4,000pcs cable ties in reel for C36150.



3. The machine consists of a tool gun and a host machine.



4. The tool gun is handheld type and could bundle goods once push its trigger.



5. The reel cable ties are loaded in the host machine.



6. The host machine is with PLC control system and touch panel.



7. You could set all parameters in host machine, such as the speed, time and the temperature.



8. It is very small without vibration bowl and noise is lower.



9. The tool gun can be mounted in the desk if to add a support.



Base data



Name SWT36150HC zip tie tool
Description Automatic cable tie machine / tool
Features and advantages

1. Use reel cable ties;

2. The binding force could be adjusted easily.

3. Automatic bundle object with different diameters without any adjustment, within max Dia. 31mm.

4. Automatic detect jammed. If cable tie jammed in the hose/gun, the machine would stop and clean the jammed cable ties, restart.

Bench mount kit Including a metal support, a foot pedal(Standard SWT36150 without these)
Overhead suspender Overhead suspender possible( Extra purchase)
Cable ties C36150 reel cable ties
Material Nylon 66 certified by UL
Width 3.6mm
Length 150mm
Quantity/REEL 4,000pcs
Usage/per time in vibration bowl None
Bundling Max Dia. for wire Ø31.0mm
Bundling Max Dia. for tube Ø30.0mm
Bundling Max Dia. Ø3.0mm
Bundling speed 1.0S/cable tie
Operation Electrical
Tool head power DC24V, automatic transfer
Power supply AC110V/AC220V, 50/60Hz; different plugs
Pneumatic pressure 5kg/cm²
Max power 1,000W
Tension force Adjustable



Packing details



SWT36150HC Packing Details
Export wooden case 1pcs
The host machine / wooden case G.W./kg 40kg
Packing Size/cm L62 * W60 * H38cm
The vibration bowl / wooden case G.W./kg None
Packing Size/cm None
Total G.W. 40kg( estimated)



FAQ



1. What is your payment term?

Fob Shenzhen or EXW. 100%TT payment before ship.



2. What are the differences between SWT36150HC and ATS3080 other brand machine?

Pls see the table

Description SWT36150HC Other brand machines
Adapt different diameter objects automatically and don’t have to change jaws. Yes No
Using reel cable ties Yes Yes
Touch panel to manage Yes No
Temperature control system Yes No
Auto detect failure Yes No
