| Brand Name: | Swift |
| Model Number: | SWT25100HC |
| MOQ: | 1pcs |
| Price: | Negotiation |
| Delivery Time: | 10 - 15days |
| Payment Terms: | T/T |

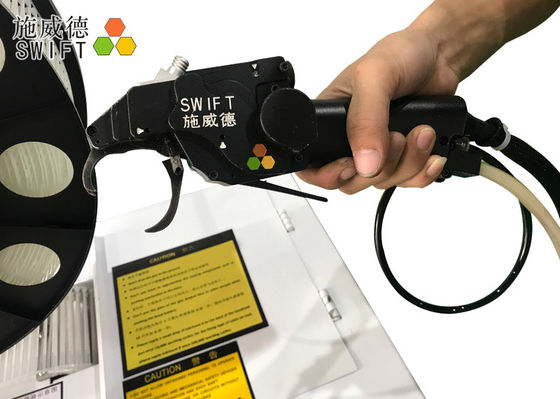

Reel Cable Tie Guns Automatic Cable Tie System Bundling Speed 1.0S Handheld Gun
SWT25100HC automatic cable tie gun bundles wire harness in the speed of 1.0S. It uses bulk nylon cable ties in reel. There are many functions to improve the machine’s reliability and stability.
SWT25100HC specifications
| Automatic cable tie gun SWT25100HC – handheld type | |||
| Model | SWT25100HC | ||
| Cable tie type | Reel cable ties | ||
| Cable tie size | width | mm | 2.5 |
| inch | 0.1＂ | ||
| Length | mm | 120 | |
| inch | 4.72＂ | ||
| Tie thick | mm | 1.1 | |
| inch | 0.04＂ | ||
| Tensile strength | IBS | 18 | |
| KG | 8 | ||
| Bundling diameter | mm | Ø3 –ø18 | |
| Operation speed | seconds | 1.0s | |
| The host machine size | mm | L710 * W470 * H230 | |
| The gun head size | mm | L250 * W102 * H64 | |
| Power supply | V | AC220V, 50 / 60Hz, Euro plug | |
| Pneumatic pressure | Kg/cm² | 5 | |
SWT25100HC features
1. 5,000pcs nylon cable ties in reel. Place it in the host machine.
2. Touch screen with multi-languages available Chinese / English / Italian / Korean. The standard is with Chinese and English languages.
3. With auto detect failure function. If the tool fails to operate cable tie, it would stop working, deal with them and automatically restart.
4. With temperature control system.
5. The machine could count the qty of cable ties successfully bundled already.
6. Could be used as handheld or fixed type. The alloy support is optional.
7. The tensile forces adjustable.
How to use SWT25100HC automatic cable tie system?
Place reel cable ties – Power on – “Auto” mode – Click "Start" – Pull the trigger – start to bundle
Remark
1. The tail part of cable tie is forward and the head is back.
2. The feeding hose keeps straight during work.
3. Don’t tighten the feeding hose and the data hose together.
Company service
1. Purchase guide
If you are not sure which model is the best option for you, please contact us and offer your sample picture. It is our pressure to give you recommendation.
2. Technical support
Customized is welcomed. We have a strong R & D department. If you want to customize a automatic cable tie machine with a robot arm, pls contact our sales team.
3. After sales service.
We are here all the time. Pls don’t worry, if have any problems, pls free to contact us any time.
FAQ
1. A: We are wire harness manufacturer. There are different kinds of harness. Can the automatic cable tie tool bundle all of them?
Q: The automatic cable tie tools have their max bundle diameters. For example, cable tie tool SWT25100H, its max bundle diameter is 18mm. If the bundle diameter of two or many harness is less than 18mm, the tool can bundle it. You just need to touch the trigger, it would start to bundle.
2. A: If the machine has anything wrong, what should I do?
Q: Pls free to contact and send videos to us. We would guide you how to solve it. It is easy to do.
3. A: Do you often attend the fairs?
Q: Yes, we often attend the fairs in China, Germany and USA. Sometimes we would spend time visiting our clients in Euro.
In Munich
Video
Video
Video
Video
|
|
