80x2.5mm Wire Tie Machine , Automatic Cable Tie Tool For Binding Simple Wires

80x2.5mm Wire Tie Machine , Automatic Cable Tie Tool For Binding Simple Wires

  • High Light

    cable tie tension tool

    ,

    bundle wrapping machine

  • Name
    Wire Tie Tool
  • Model
    SWT25080D
  • Applications
    Binding Simple Wires
  • Cable Ties
    Width 2.5mm * Length 80mm
  • Binding Max Dia.
    14mm
  • Binding Min Dia.
    13mm
  • Place of Origin
    Made in China
  • Brand Name
    Swift
  • Certification
    CE and RoHS
  • Model Number
    SWT25080D
  • Minimum Order Quantity
    1pcs
  • Price
    Negotiation
  • Packaging Details
    wooden case
  • Delivery Time
    10 - 15days
  • Payment Terms
    T/T
  • Supply Ability
    100pcs/month

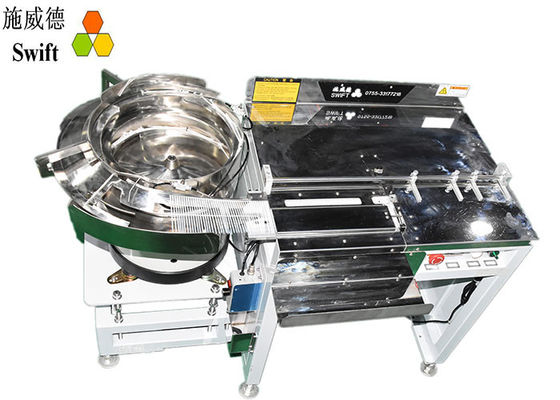

80x2.5mm Wire Tie Machine , Automatic Cable Tie Tool For Binding Simple Wires

Width 2.5mm Length 80mm Wire Tie Tool For Simple Wirings Bundled



The machine SWT25080D is suitable for simple cable binding. If your products are too many but their quantities are less, this machine is your better choice.



Features



1. The bundled object is simple, such as one cable with sleeve, several small wires so on.



2. There is a box to place the wires in the machine.



3. There are four screws to adjust the height of vibration blow.



4. The tightening force keeps same forever. If you have special requires on it, pls let me know.



5. Tread the pedal to make the machine binding simple cable with cable ties.



SWT25080D parameter



  Item Description
1 Model SWT25080D
Desktop type available
2 Application Bundling simple wires
3 Size Of cable size Width 2.5mm
Length 80mm
Thicker 1.15mm
4 Operation speed 0.8S for one cable tie
5 Max banding Dia. Ø 12mm
6 Min banding Dia. Ø 2mm
7 The feeding hose NO
8 The temperature NO
9 The gun size NO
10 The host machine size L1040 * W640 * H750mm
11 Voltage AC220 50 / 60Hz, Euro plug
12 Pneumatic pressure 3kg / cm²
13 Power 1000W
14 CE, RoHS



SWT25080D details



1 . The binding force is controlled by the mechanical device, the bind force would be more accurate and stable than the electronic measure and converting system.



2 . Could tighten harness with PVC sleeve, no need to pre-heating in advance.



3 . Use loose zip ties, vibration feeding, automatically move the cable ties to the position of the jaws.



Applications



80x2.5mm Wire Tie Machine , Automatic Cable Tie Tool For Binding Simple Wires 0



SWIFT company



We are a factory of producing automatic cable tie machine and nylon cable ties.



We have a strong R & D department who devotes to improve the machine quality and technology.



You would operate the machine easily and work efficiently.



Our target : Internationalization, branding and specialization.



FAQ



FAQ

Question

Answer

1. Can you offer free sample?

No, we can’t. But we can offer free sample of nylon cable ties.

2. Could you help to check our product?

Yes, pls send the bundled goods and nylon cable ties to our factory.

3. How do you pack the machine?

It will be packed in a wooden case.

4. Is it easy to move?

Yes, there are four wheels.

5. How can I get a quotation?

Pls contact us now. You will get a reply soon.

6. What is the warranty?

1 year warranty and tech support forever.

7. Do you offer other plug beside Euro plug?

Yes, we offer Australia plug, UK plug, US plug.
