| Brand Name: | Swift |
| Model Number: | SWT25100HC |
| MOQ: | 1pcs |
| Price: | negotiation |
| Delivery Time: | 10 - 15days |
| Payment Terms: | T/T |

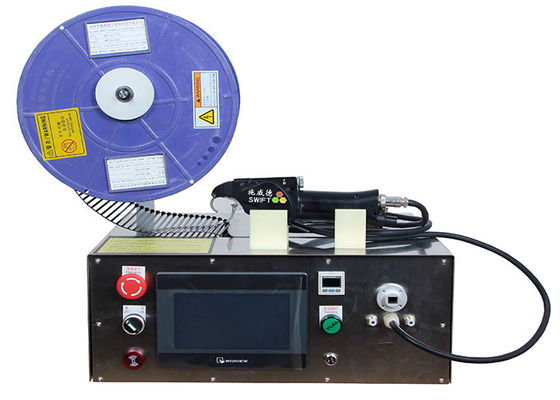

Automatic Nylon Cable Tie Locking Cutting Machine Cable Tie Straps Width 2.5mm
This machine replaces the work of binding cable ties by hand. It is very small and the weight is about 30kg. It is suitable to use it outdoor or in the factory. Only smaller than the max diameter 18mm. can it be dealt with the object automatically.
SWT25100HC specifications
| No. | Item | Description | Value |
| 1 | Model | SWT25100HC | No |
| Handheld type | |||
| Or add a support to be fixed in desk | No | ||
| 2 | Size Of cable size ( the reel cable ties ) | Width | 2.5mm |
| Length | 100mm | ||
| Thicker | 1.2mm | ||
| Qty in a roll | 5000pcs | ||
| 3 | Operation speed | For one cable tie | 1.0S |
| 4 |
Max banding Dia.
|
For wire | Ø 18mm |
| For tube | Ø 16mm | ||
| 5 | Min banding Dia. | For tube / wire | Ø 3mm |
| 6 | The feeding hose | Length | 2.5m |
| 7 | The bending force | 4 kinds of force available | |
| 8 | Gun size | L250 * W102 * H64mm | |
| 9 | The host machine size | L710 * W470 * H230mm | |
| 10 | Voltage | AC220V, 50 / 60Hz | |
| 11 | The gun V. | DC24V ( auto switch ) | |
| 12 | Power | 1000W | |
| 13 | Pneumatic pressure | 5kg / cm² | |
| 14 | Warranty | 1year | |
Machine SWT25100HC details
1 . Using cable tie straps / reel cable ties
2 . No vibration bowl.
3 . Binding force is adjustable. There are 4 forces to choose.
| The vernier scale corresponds to the binding force | ||||
| Vernier graduation | 0 | 1 | 2 | 3 |
| The theory value | 2kg | 4kg | 6kg | 8kg |
4 . When using it, the temperature is set on 50 - 60degree C. It helps to improve the cable ties' toughness.
5 . Could be applied to full automation line.
Our company advantages
1 . We have a strong research and design department. The machine is one of our patent products.
2 . As a manufacturer, we can provide you the good quality machine and good service.
3 . Our machine is better than others. One customer who used other brand machine before chose to use our machine at last.
4 . If you need, we also can offer you cable ties with competitive price. We make cable ties in our factory too.
Applications
Cable banding, especially be suitable for the application of onsite assembly for Plane, Car, Train, Ship, Appliances, Telecom equipment, Toys, etc. It is also suitable for goods fixing & packing,joints fixing of gas & liquid pipes and for the sealing of food packing and liquid & material packing in bags.
Trade terms
1. Payment: 100% TT payment before shipment.
2. The delivery time is 10 - 15 working days. It depends on the order quantity.
3. Shipment: by boat or by air.
Video
Video
Video
Video
|
|
