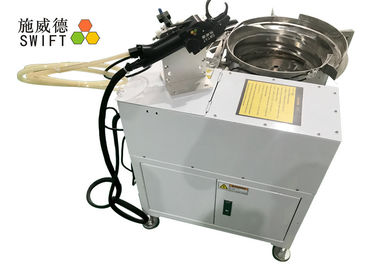

Handheld Automatic Cable Tie Tool In Nylon Cable Tie Size With A Support

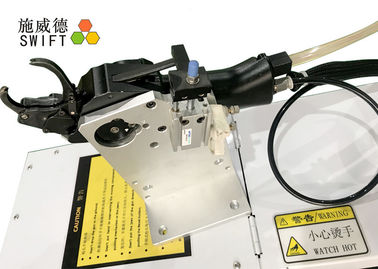

Handheld automatic cable tie machine means that you could hold the gun to bundle the goods. When you want to sit down to work, pls install the support to fix the gun in the desk. It is easy to do that.
Description
1. Using bulk nylon cable ties.
2. With a support, SWT25080H-F could automatically bundle wires / tubes with cable ties once push the pedal.
3. The whole operation takes about 0.7S.
4. Touch screen with two languages, Chinese and English.
5. Could be fitted to a full-automation line.
6. If the gun fails to operate cable tie, it could detect by itself and deal with it, then restart again.
SWT25080H-F info
|
Name |
Handheld automatic cable tie machine |
| A alloy support |
1pcs |
|
Model |
SWT25080H-F |
|
Cable tie |
Loose cable ties |
|
Cable tie width |
2.5mm |
|
Cable tie length |
80mm |
|
Tensile force |
8kg |
|
Head size |
L4.6 * W4.6 * H3.7mm |
|
The host machine size |
L670 * W660 * H670mm |
|
The gun size |
L245* W95* H64mm |
|
Power supply |
AC220V, 50 / 60Hz |
|
Pneumatic pressure |
5kg/cm3 |
FAQ
1. If I have a very urgent order, do I need to pay extra?
No, if it is really urgent, we can use some ready one of the machines or other machines that have already been ordered for temporary , but this situation does not meet the requirements every time. Therefore, please order in advance
2. How to control your product quality?
Our factory certified to ISO 9001-2015 quality management system and produces.
We control our products quality in strict accordance with this standard.
All products are CE certified and have passed the Reach & RoHS test.
3. Can your provide an auto cable tie tools to us to test the quality?
No, 100%TT payment before ship. Pls understand.
