Fixing Type Automatic Cable Tie Tool For Bundling And Using Nylon Plastic Ties

Fixing Type Automatic Cable Tie Tool For Bundling And Using Nylon Plastic Ties

  • High Light

    automatic cable tie machine

    ,

    zip tie tensioner tools

  • Product Name
    Fixing Type Automatic Cable Tie Tool
  • Application
    Banding Wire Harness
  • Cable Tie Spec
    W2.5 * L80mm
  • Minimum Banding Diameter
    Ø2.0mm
  • Maximum Banding Diameter
    Ø10mm
  • Operation Speed
    0.9S
  • Place of Origin
    Made in china
  • Brand Name
    Swift
  • Certification
    CE
  • Model Number
    SWT25080F
  • Minimum Order Quantity
    1pcs
  • Price
    negotiation
  • Packaging Details
    Packed in wooden case
  • Delivery Time
    15 working days after received your payment
  • Payment Terms
    100% T/T
  • Supply Ability
    100pcs per month

Fixing Type Automatic Cable Tie Tool For Bundling And Using Nylon Plastic Ties

Fixing Type Automatic Cable Tie Tool For Bundling And Using Nylon Plastic Ties

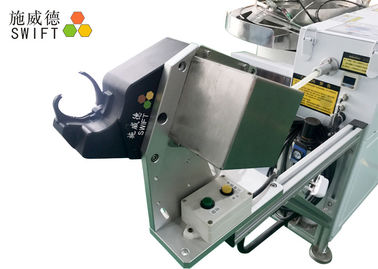

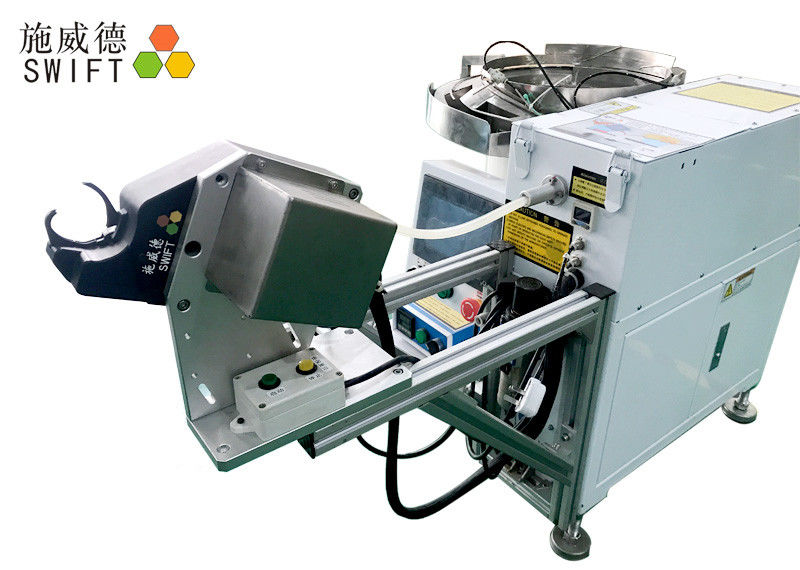

SWT25080F is a fixed type automatic cable tie tool because the tool head is fixed in the bench. Using loose cable ties to automatic bundle is one of special features.



SWT25080F technical parameters



1 Item Description Value
2 Model SWT25080F No
The tool head fixed in the desktop No
3 Size Of cable size Width 2.5mm
Length 80mm
Thicker 1.1mm
4 Operation speed For one cable tie 0.7S
5



Max banding Dia.



For wire Ø 14.0mm
For tube Ø 13.0mm
6 Min banding Dia. For tube / wire Ø 2.0mm
7 The feeding hose Length 2.5m
8 The bending force Adjustable
9 Voltage AC220V, 50 / 60Hz
Euro plug
10 Pneumatic pressure 5 kg / cm²



Advantages



1. Using loose cable ties to bundle automatically. Vibration feeding.



2. The tool head is fixed in the bench. Operator’s hands can hold objects.



3. Automatic bundle after tread the foot pedal, including tightening and cutting.



4. PLC control system and touch screen with Chinese and English language.



5. The tightening forces are adjustable.



6. Hands free. Operator could catch items by two hands and tread the pedal to start machine.



Applications



1. The plastic pipes.



2. The plastic connector.



3. The bags or bottles.



4. Others.



How to use cable tie machine SWT25080F?



Load cable ties 200pcs -300pcs per time – Handheld objects in the tool jaws – Tread the pedal – Bundle and cut off.



Packing details



SWT25080F automatic cable tie machine packing details
The host machine / wooden case Weight/kg 101kg
Packing Size/cm L75 * W71 * H86cm
The vibration bowl / wooden case Weight/kg 71kg
Packing Size/cm L71 * W61 * H99cm



Trade terms



Item Description
Payment 100% TT payment before shipment
Lead time 10 – 15working days
Shipment By sea, by air.
Sea port Shenzhen, Shanghai
Price EXW, FOB Shenzhen or others



FAQ



1. Can you offer free sample?

No, we can’t. But we can offer free sample of nylon cable ties.



2. What information do I let you know before get a quotation?

    Pls let sales team known cable tie size, picture of bundled object.



3. How do you ship the machines and how long do it take?

It would take about 30days by sea. If urgent, it can be shipped by air but the freight bears to you. It takes about 5 or 7days.



4. How do I know how to operate the machine?

Pls check English manual and the videos.
