PLC Control Automatic Cable Tie Tool SWT25100H For Packing Nylon Plastic Ties Fast

Name: PLC Control Automatic Cable Tie Tool SWT25100H For Packing Nylon Plastic Ties Fast
Brand: Shenzhen Swift Automation Technology Co., Ltd.
SKU: SWT25100H
Price: 8,500.00 USD
Availability: InStock

Brand Name:	SWIFT
Model Number:	SWT25100H
MOQ:	1pcs
Price:	Negotiation
Delivery Time:	10-12days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, RoHS

Name:

Automatic Cable Tie Tool

Model:

SWT25100H

Using Nylon Cable Ties:

W2.5 * L100mm

Cable Tie Material:

NYLON Pa66

Min Banding Dia.:

2mm

Max Banding Dia. For Wire:

18mm

Max Banding Dia. For Tube:

16mm

Operation Speed:

0.7S Per Cable Tie

Packaging Details:

Wooden cases

Supply Ability:

100pcs/month

Highlight:

auto bundling machine

zip tie tensioner tools

Product Description

SWT25100H Automatic Cable Tie Tool For Packing Nylon Plastic Ties Fast

Features

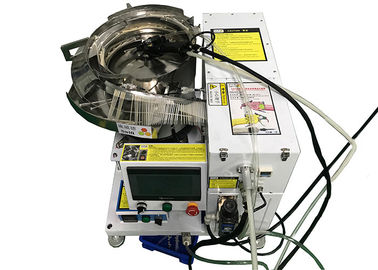

1. Vibration feeding, transferred to the Tool via hose.

2. Automatically Wrapping, Perforating, Pulling & Tightening, Cut off, Collecting the waste material into waste tank.

3. Different waste material collecting methods for choice.

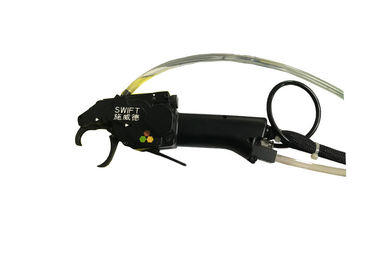

4. Ergonomic hand shank design, comfortable to hold & operate.

5. PLC + Touch Pannel controlling, easily to manage.

6. Automatically detect the failure, if the Tool failed to operate the cable tie, the machine would stop immediately, and automatically deal with the failed cable tie, and automatically restart the machine.

7. Automatically detecting cable tie jam, if there is any cable tie jammed in the Tool or in the hose, the machine would stop running and automatically clean the jammed cable tie, and then restart automatically.

Technical data

Model	SWT25100H
Using nylon cable ties	T25100
Nylon cable ties size of T25100	W2.5 * L100
Min banding dia.	2mm
Max banding dia. for wire	18mm
Max banding dia. for tube	16mm
Operation speed	0.7S
Voltage	AC220V, 50/60Hz
Pneumatic pressure	5kg/cm²

PLC Control Automatic Cable Tie Tool SWT25100H For Packing Nylon Plastic Ties Fast 0

Related machines

Model	SWT25080H	SWT25120H
Using nylon cable ties	T25080, width2.5mm * length80mm	T25120, width2.5mm * length120mm
Min banding diameter	2mm	2mm
Max banding diamete for wire	14mm	22mm
Max banding diameter for tube	13mm	21mm
Operation speed	0.7S	0.8S
Host size/weight	L690 * W670 * H670mm/140kg	L690 * W670 * H670mm/140kg
Gun size/weight	L245 * H95 * T64mm/0.84kg	L256 * H108* T64mm/0.86kg

Package

Be packed in two wooden cases.

PLC Control Automatic Cable Tie Tool SWT25100H For Packing Nylon Plastic Ties Fast 1

FAQ

1. What is your minimum order quantity?

For Auto cable tie tools, MOQ:1 pcs.

For Nylon cable tie,MOQ:200,000 pcs

2. How to control your product quality?

Our factory certified to ISO 9001-2015 quality management system and produces ,We control our products quality in strict accordance with this standard. All products are CE certified and have passed the Reach & RoHS test.
