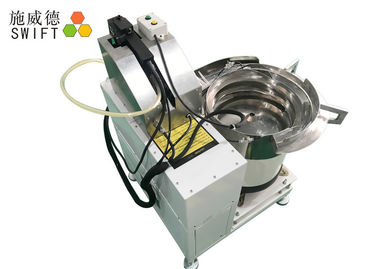

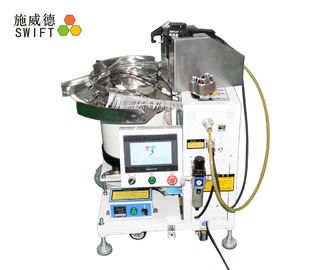

PLC Controlling Wire Tying Machine High Working Efficiency For Motor Coil

Name: PLC Controlling Wire Tying Machine High Working Efficiency For Motor Coil
Brand: Shenzhen Swift Automation Technology Co., Ltd.
SKU: SWT25120M
Price: 8,250.00 USD
Availability: InStock

Brand Name:	Swift
Model Number:	SWT25120M
MOQ:	1pcs
Price:	Negotiation
Delivery Time:	10 - 15days
Payment Terms:	100% T/T payment before shipment

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Name:

Auto Cable Tie Machine For Motor Coil

Model:

SWT25120M

Cable Ties:

W2.5mm * L120mm

Tie Thick:

1.1mm

Tie Head Size:

L4.6 * W4.7 * H4.8

Bunding Dia.:

11mm - 15mm

Packaging Details:

wooden case

Supply Ability:

100pcs/month

Highlight:

nylon tie tool

binding wire tying machine

Product Description

Small Room Bundling Automatically Cable Tie Machine For Motor Coil

It is the first one of cable tie machine for motor coil and the objects with small room for cable ties bundled.

Why do you choose SWT25120M cable tie machine?

It is suitable for using it the assembly line. It improves the working speed and saves much time.

SWT25120M advantages

1 . Be suitable for motor coil bundling which has been winded on stator core in advance. 1.2secondds to finish binding it with cable tie.

2 . Vibration feeding automatically that prevents you picking cable tie up one by one.

3 . PLC control and touch screen, easily manage.

4 . A collecting waste material system with a vacuum pump that is useful to collect the cable tie waste.

5 . The machine could detect whether cable ties bundle successfully or not. It could deal the failed cable tie automatically and restart.

SWT25120M basic information

Product name	Automatic cable tie machine	Model	SWT25120M	Using type	Fixed type
Zip tie type	Loose cable ties	Cable tie width	2.5mm	Cable tie length	120mm
Size of host machine	Length 725mm	Weight of host machine	146kg	Material	Metal
	Width 710mm
	Height 670mm
Size of gun head	Length 350mm	Weight of gun head	6kg	Certificate	CE, RoHS
	Width 282
	Height 189mm
Power supply	AC220V, 50 / 60Hz ; AC110V, 50 / 60Hz ;	Power	1000W	Pneumatic pressure	5kg / cm²

SWT25120M technical data

Bundling Max Dia. for motor coil

Ø15mm

Bundling Min Dia. for motor coil

Ø11mm

Operation speed

1.2S per cable tie

Actual pneumatic pressure

3 - 5 kg / cm²

suggest

Temperature

40℃ suggest

Qty of cable ties per time in vibration bowl

200pcs per time

Applications

Motor coil with stator core or objects with small room for cable tie bundled

SWIFT advantages

Our company:

Professional engineers graduated from famous universities.

They ever worked as the weapon designer or worked in large multinational enterprises for many years.

The assembly engineer worked in Japanese automation companies many years

Our products:

Most of products have been patented. We have more than 30patents with automatic cable tie tool design and software.

FAQ

FAQ
Questions	Answers
1 . What is the difference between SWIFT cable tie tool and traditional cable tie gun?	SWIFT cable tie gun can automatically bundle objects with cable ties cut off it. The traditional tool does these operations by hand. It is very slowly.
2 . Can I visit your factory?	Welcome to our factory in Shenzhen.
3 . Have you attended some fairs?	We would attend many fairs every year home and abroad. We had attended the fair in Munich German and in HK.
4 . Do you accept the agents?	Yes, welcome to join in us.
