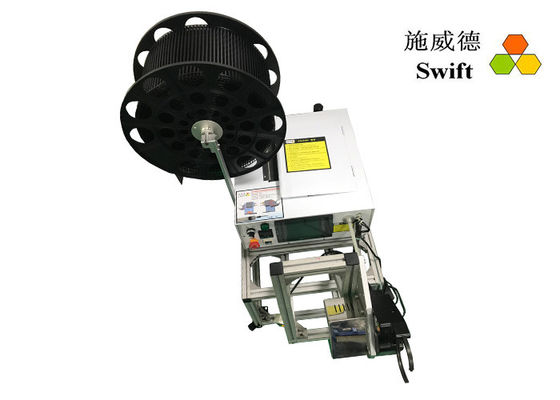

4000 Pcs/Reel Nylon PA6.6 1.3S Automatic Cable Tie Machine

4000 Pcs/Reel Nylon PA6.6 1.3S Automatic Cable Tie Machine

  • High Light

    1.3S Automatic Cable Tie Machine

    ,

    1.3S Auto Cable Tie Machine

    ,

    1.3S Auto PA6.6 Cable Tie Machine

  • Name
    Automatic Cable Tie Machine
  • Model
    C36200, Cable Ties In Reel
  • Bundle Productivity
    2,000 - 3,000pcs/h
  • Bundle Diameters
    20mm - 42mm
  • Bundle Forces
    Max 80N, Adjustable
  • Load Capacity Of Cable Tie
    4,000pcs/reel
  • Bundle Speed
    1.3S Per Cable Tie
  • Voltage
    AC220V, 50/60Hz, Euro Plug
  • Place of Origin
    Made in China
  • Brand Name
    Swift
  • Certification
    CE
  • Model Number
    SWT36200FC
  • Minimum Order Quantity
    1pcs
  • Price
    Negotiation
  • Packaging Details
    wooden case
  • Delivery Time
    10 - 15days
  • Payment Terms
    T/T
  • Supply Ability
    100pcs / month

4000 Pcs/Reel Nylon PA6.6 1.3S Automatic Cable Tie Machine

4000 Pcs/Reel Nylon PA6.6 1.3S Automatic Cable Tie Machine



1. SWT36200FC only uses cable ties in reel.



2. There are 4,000pcs nylon zip ties in reel.



3. Bundle capacity: 3,000pcs/hour



Features of automatic cable tie machine



1. Automatic cable tie machine SWT35200FC is small and can be put in the worktop. Its G.W. IS 30kg.



2. There is a fixed cable tie gun. When operator pedals the pedal, reel cable tie will be cut single cable tie, then be wrapped and tighten.



3. There are 4,000pcs nylon tie wraps in a reel so worker doesn’t need to put cable ties very often.



4. Our factory devotes to developing automatic cable tie machine over 8years and doesn’t make other machines. We are very professional in this industry.



5. There are more than 400clients who are using our machines.



Specifications of nylon cable tie machine



Model SWT36200FC
Applicant cable ties C36200
Cable tie size W3.6 * L200mm * T1.2mm
Cable ties material Nylon PA6.6
Min binding Dia. Ø15 mm(Suggest)
Max banding dia. Ø42 mm
Operation speed 1.3s/cable tie
Electrical power Host: AC 220V, 50/60 Hz, different plugs
Tool tie gun: DC 48V(automatic switching)
Pneumatic pressure 5 Kg/ cm²
Power 1KW
Maximum tension force 80N, adjustable
Productivity 2,000 – 3,000 pcs/h
Weight Host:30 kg ( With 4 wheels, move easily )
Gun: 4.2kg
Size Host: L710 * 470 * 230mm
Gun: L299 * W240 * H149mm
Certificate CE & RoHS



Application of automatic cable tie equipment



1. Automatic tie wrap machine SWT36200FC can bundle wire harness total diameter up to 42mm.



2. Other products, like big copper tubes/silicone tubes



Advantages of nylon cable tie machine



1. 1.3S finishing cable ties wrapping, tightening and cutting.



2. Nylon cable tie machine can bundle about 3000pcs cable ties in 1 hour.



3. The bundle forces are adjustable. The max is 80N.



4. The waste could be collected into a box.



5. Without vibration feeding, automatic cable tie machine 36200fc is small.



6. Voltage AC220V, 50/60Hz; Pneumatic pressure: 5kg/cm²



4000 Pcs/Reel Nylon PA6.6 1.3S Automatic Cable Tie Machine 0



Optional of automatic cable tie machine



1. Big frame support

SWT36200FC is small so it can be put in the support. And the tie gun is fixed in it.



About packing



Be packed in wooden case.



Item QTY Packing size G.W./kg N.W./kg
36200FC/wooden case 1pcs 95*58*110cm 50kg 35kg
C36200 reel cable ties/carton box 8,000pcs 47*47*48cm 11kg 8kg



About delivery



Lead time for machine: 12working days



Lead time for reel cable ties: 7working days



Large quantities will be executed based on the contract.



All machines are passed CE, RoHS. Nylon cable ties are passed REACH, RoHS.



FAQ



1. Can we use reel cable ties from other factories in automatic cable tie machine SWT36200FC?



No, different factories produce different cable ties. And auto cable tie machine can deal with one kind of nylon tie wraps.



2. Do I have to reel cable ties often?



No, you don’t have to. There are 4,000pcs nylon ties in a reel and you could reload it after running out.



3. What are the differences between your auto nylon cable tie machine and others?



A. Our automatic cable tie machine looks like beautiful. It is made from alloy steel, not plastic.



B. Stable. The cable tie gun can bundle 3,000pcs cable ties in 1 hour.



C. The cable tie gun could be handheld cable tie gun, besides the fixed zip tie gun.
