80N Small And Reliable Reel Cable Tie Bundle Machine For Improving Capacity 1800pcs/h
-
Product NameWire Tie Tool
-
Bundle Capacity1800 - 2400pcs/h
-
Bundle Speed1.0S
-
Bundling Dia.3mm - 18mm
-
Electric VoltageAC220V, 50/60Hz
-
Cable Tie Gun TypeHandheld Cable Tie Gun
-
Cable TiesC25100, Width2.5 * Length200mm
-
Reel Cable Ties Qty5,000pcs Per Reel
-
Place of OriginShenzhen, China
-
Brand NameSwift
-
CertificationCE, RoHS
-
Model NumberSWT25100HC
-
Minimum Order Quantity1pcs
-
PriceNegotiation
-
Packaging Detailswooden cases
-
Delivery Time10 working days
-
Payment Terms100% T/T payment before ship
-
Supply Ability100pcs/month
80N Small And Reliable Reel Cable Tie Bundle Machine For Improving Capacity 1800pcs/h
80N Small And Reliable Reel Cable Tie Bundle Machine For Improving Capacity 1800pcs/h

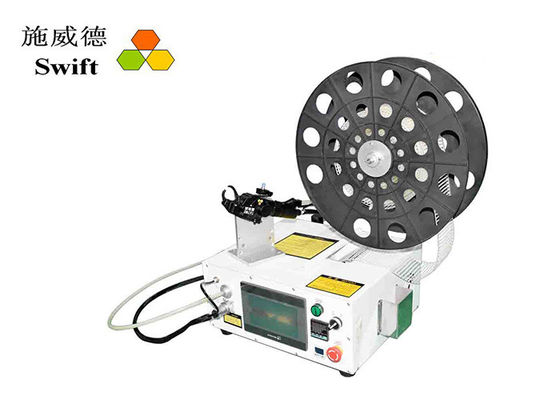

Automatic cable tie tool SWT25100HC uses reel nylon ties C25100. Operator can quickly tie nylon cable ties by using cable tie gun.
Specifications of nylon cable ties
| 1. Nylon cable tie machine | |
| Model | SWT25100HC |
| Bundle speed | 1.0S per cable tie, including wrapping, tightening and cutting |
| Bundle productivity | 1800 - 2400pcs including the time of picking and placing objects |
| Applicant cable ties | C25100 |
| Length of cable tie | 100mm |
| Head size of cable ties | L4.8*W5.0*H3.7mm |
| Applicant bundle diameters for wire | Ø3mm – Ø18mm |
| Applicant bundle diameters for tubes | Ø3mm – Ø16mm |
| Machine size | L71 * W47 * H23cm |
| Voltage | AC220V, 50/60Hz |
| Pneumatic pressure | 0.5Mpa |
| 2. Trading information | |
| Seaport | Shenzhen, Guangzhou |
| Lead time | 10 working days |
| Packing | Packed in wooden case |
| Transport ways | By sea, air, ups |
Features of cable tie gun
1. PLC control system and touch screen: The human-computer interaction interface has the function of operation teaching, and the parameter modification is intuitive.

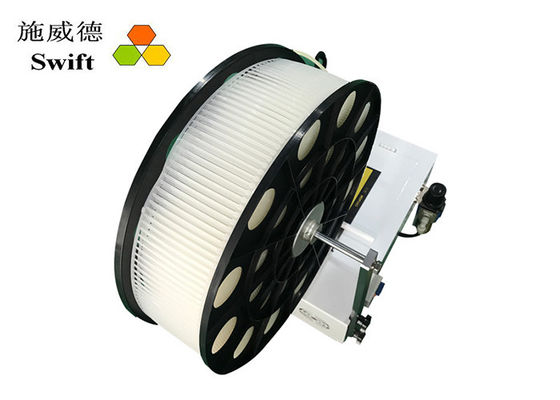

2. Automatic cable tie tool uses reel cable ties. There are 5,000pcs nylon cable ties in a reel. Operator doesn’t have to load nylon ties often.
3. Automatic cable bundle machine is with a handheld cable tie gun. It is light and more flexible to adapt to different objects.
4. The binding forces could be set easily. Please turn a knob in the tie gun.
5. SWT25100HC can bundle objects whose max diameter is 18mm.
6. Automatic cable tie machines ask for pneumatic pressure 0.5Mpa.
Advantage of automatic cable tie machine
1. SWT25100HC is with a handheld tie gun. If to add a support, tie gun can be fixed in worktop pr assembly line.
2. The waste would be collected into a box.
3. Swift automatic cable tie gun could automatically detect jammed cable ties and deal with them, then restart.
4. Cable tie gun could be applied to full automation line.
Applications
Be suitable for quickly tying nylon cable ties to wire harnesses, such as wire harness arrangement on tooling boards, internal wire harness binding of household appliances, etc.
Packing details
| Item | Qty |
| Host machine | *1 |
| Handheld cable tie gun | *1 |
| Tool kit | *1 |
| English manual | *1 |
| Support for reel cable ties | *1 |
Packing size: 100*55*65cm/wooden case; G.W.: 80kg; N.W.: 65kg
Lead time: 10working days.
Warranty: 1 year and tech support forever
FAQ
1. Do you have smaller automatic cable tie machine than SWT25100HC?
No, SWT25100HC is the smallest one.
2. How could I adjust the binding forces?
Please turn a knob in the tie gun. Bigger numbers, bigger forces.
3. Could I click the key “Load” often?
No, you couldn’t. This key can be used when to load reel cable ties. After loading, it can’t be used unless reel cable ties run out.
4. Do you have English manual?
Yes, every machine has a manual.
