Easy And Fast 1.2S Automatic Cable Bundle Machine For Tying Tubing Components 31mm

Easy And Fast 1.2S Automatic Cable Bundle Machine For Tying Tubing Components 31mm

  • Product Name
    Automatic Wire Tie Tool
  • Bundling Dia.
    3mm - 31mm
  • Cable Ties
    T36150, Width3.6 * Length150mm
  • Bundle Speed
    1.2S
  • Function
    Quickly Tying Nylon Zip Ties
  • Bundle Capacity
    2400pcs/h
  • Electric Voltage
    AC220V, 50/60Hz
  • Cable Tie Gun Type
    Fixed Cable Tie Gun
  • Place of Origin
    Shenzhen, China
  • Brand Name
    Swift
  • Certification
    CE, RoHS
  • Model Number
    SWT36150F
  • Minimum Order Quantity
    1pcs
  • Price
    Negotiation
  • Packaging Details
    wooden cases
  • Delivery Time
    15 working days
  • Payment Terms
    100% T/T payment before ship
  • Supply Ability
    100pcs/month

Easy And Fast 1.2S Automatic Cable Bundle Machine For Tying Tubing Components 31mm

Easy And Fast 1.2S Automatic Cable Bundle Machine For Tying Tubing Components 31mm

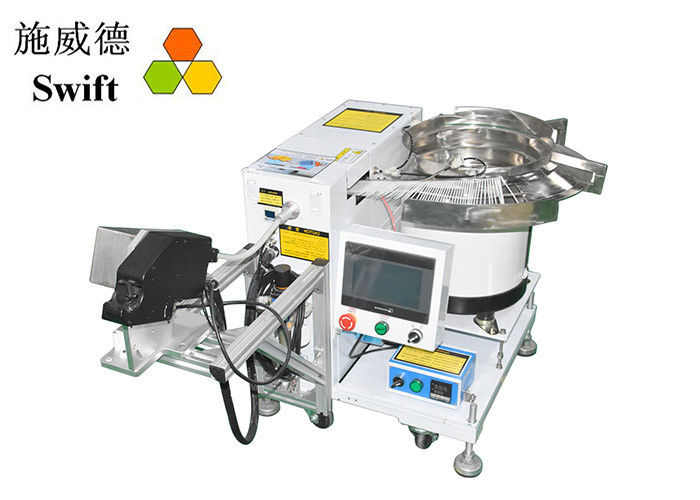

Fixed cable tie gun can wrap cable tie and cut off the tail after tightening. It takes 1.2 seconds to wrap, tighten and cut off a cable tie.



Tubing components of air condition is strange and can’t be placed flat. Need to tie nylon cable ties in multiple positions, the ordinary desktop cable tie machine (such as SWT25100D/080D) can’t achieve the bundle.



Technical data of cable tie gun machine



1. Automatic cable bundle machine
Model SWT36150F
Bundle speed 1.2S per cable tie
Bundle productivity 2400pcs including the time of picking and placing objects
Applicant cable ties T36150
Length of cable tie 150mm
Head size of cable ties L6.5*W6.5*H4.7mm
Applicant bundle diameters for wire Ø2mm – Ø31mm
Applicant bundle diameters for tubes Ø2mm – Ø30mm
Machine size L89 * W90 * H79cm
Voltage AC220V, 50/60Hz
Pneumatic pressure 0.5Mpa
2. Trading information
Seaport Shenzhen, Shanghai
Lead time 15 working days
Packing Packed in wooden cases
Transport ways By sea(30days), air(6-8orking days), DHL



Features of cable tie gun



1. Loose cable ties are put into vibration bowl. Then they would be transferred into the tie gun.



2. Nylon cable ties would be wrapped, tightened and cut off after treading the foot pedal.



3. Operator could adjust the binding forces easily. 20N – 80N are adjustable.



4. Cable tie gun is fixed in the worktop/assembly line/other positions.



5. Cable tie gun works with host machine. It can’t work alone.



6. The automatic cable tie machine asks for voltage AC220, 50/60Hz and pneumatic pressure 5kg/cm².



Easy And Fast 1.2S Automatic Cable Bundle Machine For Tying Tubing Components 31mm 0



Advantages of automatic cable tie gun



1. We have a strong design team who has developed this industry over 8 years.



2. Our factory designs different types of automatic cable tie machines, based on different applications.



Item Handheld tie gun(H) Handheld tie gun(HC) Fixed cable tie gun(F) Fixed cable tie gun(FC) Cable tie gun (M) Desktop types(D)
Using loose cable ties
Using reel cable ties
Application products
Wire harness
Silicone tubes
Copper tubing components
PE bag
Universal Motor
Objects with small room to go through cable tie



Please send picture of application products to our team, we would inform you which type is suitable.



3. We are serving more than 400 clients from all over the world.



Applications



Tubing components of air conditioning or refregirator components

Easy And Fast 1.2S Automatic Cable Bundle Machine For Tying Tubing Components 31mm 1



Packing information



Packing list

Cable tie gun *1
Host machine *1
Vibration feeder *1
English manual *1
Big frame to support cable tie gun(Option) *1
Tool kit *1



Item Packing size/wooden case G.W./kg N.W./kg
Vibration feeder 71*65*67cm 89 69
The host, tie gun and others 85*75*86cm 141 111



FAQ



1. What warranty do automatic cable tie machine offer?



They offer 1 year warranty.



2. Where are cable tie guns made?



All automatic cable tie machines are designed and manufactured in China. They are patent products.



3. Do automatic cable tie gun produce nylon cable ties?



No, they don’t produce nylon zip ties but tie nylon ties.
