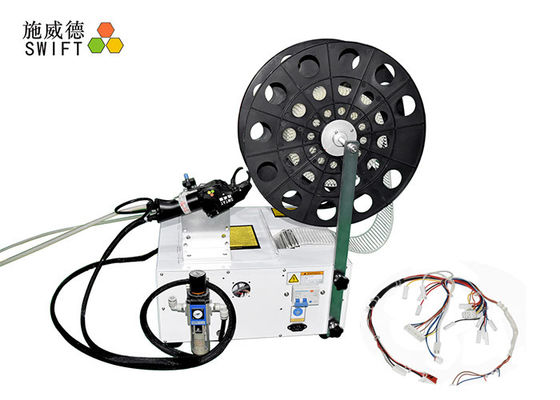

1.0S fast binding Automatic cable tie gun for C25100 nylon cable ties, plastic reel zip ties
This machine model is SWT25100HC. It is small. The gross weight is 30kg.
Be suitable for wire harness bundle, especially harness in the board or in the household appliance.
|Automatic cable tie machine model||SWT25100HC|
|Bundle speed||1.0S per cable tie|
|Applicable cable ties model||C25100(reel nylon zip ties)|
|Applicable length/width/thickness of cable ties:||100mm/2.5mm/1.1mm|
|Applicable wire harness/tubes diameters||
Ø3mm - ø18mm for wire harness;
ø3mm - ø16mm for tubes
|Host size||L510 * W480 * H230mm|
|Handheld cable tie gun size||L250*W102*T64mm|
|Handheld cable tie gun weight||0.86kg/pcs|
Operation process: Load reel cable ties(5,000pcs/reel) –distribute system, single cable tie – aim at wire harness/tubes or other products – pull the trigger and finish bundle – the waste parts will be collected.
Nylon cable ties requirements
1. Reel cable ties, size: W2.5 * L100mm
2. Head size: L4.8mm * W5.0mm * h3.7mm
3. Material: nylon PA66
4. Cable ties brand: swift
1. There are 5,000pcs nylon cable ties per reel so operator doesn’t have to load zip ties often.
2. The handheld cable tie gun weight is 0.86kg. It is easy to hold and operate.
3. Pulled the trigger, cable tie gun would start to wrap, tighten and cut plastic ties, and collect the waste.
4. The operation cycle time is 1.0S, not including the time of picking goods up.
5. The bundle diameters is from 3mm to 18mm. It can adapt to different sizes objects.
6. Voltage: AC220V, 50/60Hz; pneumatic pressure: 5kg/cm²
Other cable tie guns
|Cable tie gun type||Fixed cable tie gun||Handheld cable tie gun|
|Cable tie type||Loose||Reel|
|Cable tie model||T25100||C36200|
|Cable tie size||W2.5 * L100 * T1.1mm||W3.6 * L200 * T1.2mm|
|Bundle diameters of objects||2mm – 18mm||20mm – 42mm|
