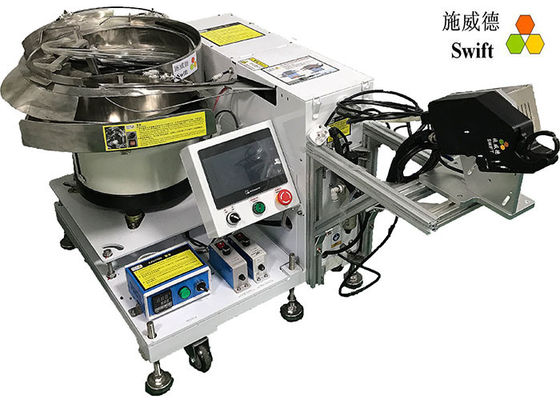

Automatic cable tie gun for tying copper tubes
Automatic cable tie gun can automatically tie nylon cable ties and cut the excess materials after tightening. The bundle speed is 1.0Seconds per cable tie.
Be suitable for bundle different sizes of cylindrical objects(Less than Max bundle diameter), such as silicone rubber tubes, soft tubes with insulation cottons, small rubber tubes in soap dispensers, copper tubes in refrigeration systems.
Scope of applications
Applicable nylon cable ties: W2.2 * L120 * T1.1mm, Model T25120
Applicable products: soft tubes/copper tubes that need to be bundled automatically with loose cable ties.
Refrigeration industry: domestic air conditioners/central air-conditioners
|Automatic cable tie gun model||SWT25120F|
|Bundle speed||1.0S per cable tie(Related to product size)|
|Applicable cable ties model||T25120|
|Applicable length/width/thickness of cable ties:||120mm/2.5mm/1.1mm|
|Applicable wire harness/tubes diameters||
ø2mm – ø22mm for wire harness;
ø2mm – ø20mm for tubes
|Host size||L670 * W660 * H660mm|
|Fixed cable tie gun size||L284*W240*T149mm|
|Fixed cable tie gun weight||4.0kg/pcs|
Operation process: put nylon zip ties into vibration bowl – load and distribute – put wire harness/tubes or other products in the middle of jaws of cable tie gun – tread the foot pedal - finish bundle
Nylon cable ties requirements
1. Cable ties material: nylon PA66 only
2. Cable ties size: W2.5 *L120 * T1.1mm; head size: L4.6*W4.7*H3.8mm
3. Tensile strength: 8kg
4. Shape: straight, no burr/flash
1. Use loose nylon cable ties and bundle them automatically.
2. Automatically wrap, tighten cable ties and cut the excess tail parts once operator pedals the foot pedal.
3. The whole operation takes about 1.0S per cable tie.
4. The binding forces are adjustable. The max is 8kgf.
5. Could be applied to automation line with robots.
6. Pneumatic pressure: 5kg/cm²
