Reel Zip Ties Bundle Automatic Cable Tie Gun With Touch Trigger

Reel Zip Ties Bundle Automatic Cable Tie Gun With Touch Trigger

  • High Light

    auto bundling machine


    zip tie tensioner tools

  • Name
    Automatic Cable Tie Gun
  • Using Cable Ties
    Reel Cable Ties C36200
  • Max Binding Dia.
  • Min Binding Dia.
  • Bundle Speed
  • Operation
    Touch Trigger
  • Function
    Auto Self-locking And Cutting
  • Voltage
    AC220V - AC240V, 50/60Hz, Plugs
  • Place of Origin
  • Brand Name
  • Certification
    CE, RoHS
  • Model Number
  • Minimum Order Quantity
  • Price
  • Packaging Details
    Wooden cases
  • Delivery Time
    12 - 15days
  • Payment Terms
  • Supply Ability

Reel Zip Ties Bundle Automatic Cable Tie Gun With Touch Trigger

C36200 Reel Zip Ties Bundle Automatic Cable Tie Gun With Touch Trigger

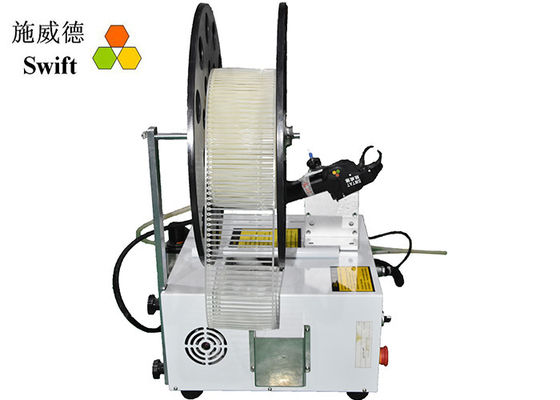

This automatic cable tie gun uses reel cable ties. It is different with the cable tie gun using loose cable ties. Reel cable ties C36200 are width3.6mm * Length200mm. And there are 4,000pcs nylon zip ties in a reel.


Technical data


Model SWT36200HC
Serials Hand-held automatic cable tie guns
Functions 1. Auto wrapping NYLON 66 plastic ties
2. Auto tightening NYLON 66 plastic ties
3. Auto cutting NYLON 66 plastic ties off
4. Auto collecting the waste
1. Max bundle diameter for wire: 42mm
2. Min bundle diameter for wire: 20mm
3. Operation speed: 1.3second every cable tie
4. Using cable ties:

C36200, W3.6mm * L200mm,

4,000pcs per reel.

Sizes and weight
1.Host size and weight L710 * W470 * H230mm; 30kg
2. Handheld cable tie gun size and weight L271 * W125 * T74mm; 0.91kg
Electrical power
1. Host AC220V – AC240V, 50/60Hz
2. Handheld cable tie gun DC24V (Auto switch)
Pneumatic pressure 5kg/cm2
Power 1,000W




1. Using reel nylon cable ties. There are 4,000pcs cable ties in a reel.


2. All reel cable ties are supported in the host machine.


3. Handheld auto cable tie gun can automatically bundle these cable ties.


4. SWT36200HC is a small automatic cable tie machine. There is no vibration feeding.


5. The waste could be collected into a tank.


6. It can be also applied to full automation line.


7. There is auto detecting function. If cable tie jammed, the machine would stop and clean it, then restart.


8. The binding force is adjustable. The max bundle force is 8kg.


9. Voltage: AC220V, 50/60Hz


Packing List


The vibration bowl for SWT36200HC *1
The host machine for SWT36200HC *1
The handheld cable tie gun for SWT36200HC *1
The English manual *1
The tool kit *1


Payment Term


1. 100% TT payment before shipping.


2. Delivery date: 12-15days.


3. EXW, FOB(Shenzhen), CIF


4. One year warranty and tech support forever.




1. Nylon is hygroscopic, it will absorb moisture, and lose moisture too. To ensure optimum performance, nylon cable ties should be used ASAP. Pls use a bag to seal these reel cable ties when you don’t use them.


2. The actual binding force is stronger than the theory value. Pls choose one that is enough for you and don’t always use the biggest force.




1. Can it be applied to full-automation line?


Yes, it can be used with a robot and it has the function that can automatically detect jammed cable tie and clean them.


2. Is there an English manual?


Yes, there is a detailed English manual.


3. What kind of nylon cable ties does the machine use?


It is reel cable ties, C36200. The length is 200mm and width 3.6mm. It is the longest cable ties that our machine can deal with.
