Robotic Full Auto Cable Tie Machine
Created with Pixso. AC220V Robotic Full Auto Cable Tie Machine 4 Axes T25100 With Rotation Function

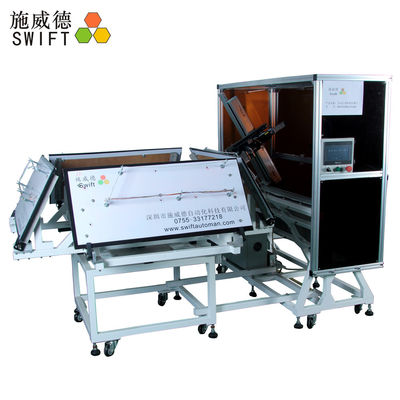

AC220V Robotic Full Auto Cable Tie Machine 4 Axes T25100 With Rotation Function

Brand Name: SWIFT
Model Number: SWT25100H-RT1000
MOQ: 1pcs
Price: Negotiation
Delivery Time: 20working days
Payment Terms: T/T
Detail Information
Place of Origin:
Shenzhen, China
Certification:
CE
Product Name:
Robot Full Auto Cable Tie Machine
Model:
SWT25100H-RT1000
Axes Qty:
4 Axes
Cable Ties Model:
T25100
Cable Ties Size:
2.5 * 100mm
Feature:
With A Robot, Cable Tie Gun
Packaging Details:
wooden case
Supply Ability:
100pcs/month
Highlight:

automatic cable tie system

,

automatic wire tie machine

Product Description

AC220V Robotic Automatic Cable Tie Machine With Rotation Function



A robot automatic cable tie machine. Full automatic cable tie gun.



Features



1. 4 axes, X, Y, Z + Rotation.



2. Moving:  X:1000; Y:450; Z:40; R: 0 - 180°.



3. There are two working fields:

One is for worker to load wires and test the connecting.

The other one is for the robot and cable gun to bundle wires.



4. Automatic detecting the fail. If bundle fail, the root would deal with the issue and repeat cable tie bundling.



5. The waste material would be collected into a box.



6. Voltage: AC220V, 50/60Hz, Euro plug



7. Pneumatic pressure: 5kg/cm²



SWT25100H-RT1000 technical parameters



1 Item Description Value
  Brand SWIFT -
2 Model SWT25120H-RT1200 -
3 4axes X/Y/Z/R Travel/mm X:1000; Y:450; Z:40; R: 0 - 180°

4



Working zone numbers 2* cable tie gun number 2*1

5



Cable tie gun Cable tie gun number 1
6 Fixture board Size L1000 * H450mm
7 Cable ties Model T25100
Width 2.5mm
Length 100mm
Thicker 1.1mm

8



Operation speed Bundle one cable tie 0.8S
9



Max banding Dia.



For wire Ø 18.0mm
For tube Ø 16.0mm
10 Min banding Dia. For tube / wire Ø 2.0mm
11 The feeding hose Length 2.2m(option)
12 The bending forces Be adjusted
13 Voltage AC220V, 50 / 60Hz
Euro plug
14 Pneumatic pressure 5kg/cm²



Service



1. Warranty: 12month and tech support forever.



2. Delivery time: 20working days.



3. Payment term: TT payment



4. MOQ: 1pcs



FAQ



1. Can you do the connecting test together?



Yes, we can. And you need offer this equipment.



2. Can the rotation table move automatically?



Yes, it can. It also can move by manual.



3. Are you a factory?



Yes, we are a factory located in Shenzhen, China.
