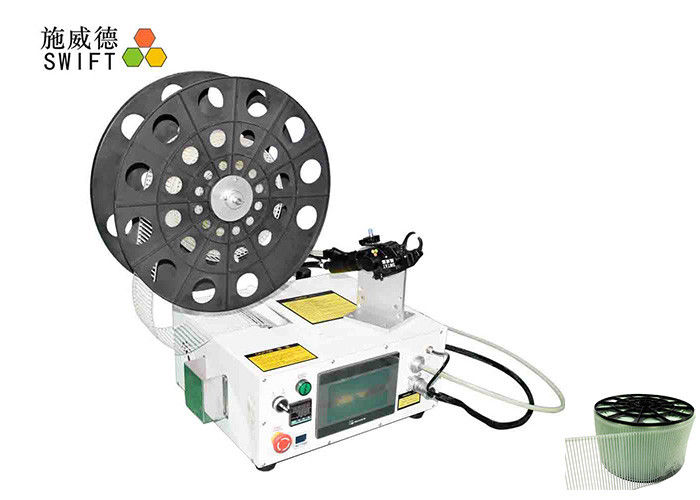

Different Plugs Automatic Cable Tie System SWT25100HC Cable Tie Gun House Appliance

Different Plugs Automatic Cable Tie System SWT25100HC Cable Tie Gun House Appliance

  • High Light

    automatic cable tie machine

    ,

    automatic zip tie machine

  • Name
    Automatic Cable Tie Tool System
  • Model
    SWT25100HC
  • Cable Ties Model
    C251000
  • Cable Ties Size
    Width2.5 * Length100mm
  • Bindig Diameter
    Ø3mm - Ø18mm
  • Voltage
    AC220V,50/60Hz, Different Plugs
  • Place of Origin
    China
  • Brand Name
    Swift
  • Certification
    CE, RoHS
  • Model Number
    SWT25100HC
  • Minimum Order Quantity
    1pcs
  • Price
    Negotiation
  • Packaging Details
    wooden case
  • Delivery Time
    10-15days
  • Payment Terms
    T/T
  • Supply Ability
    100pcs/month

Different Plugs Automatic Cable Tie System SWT25100HC Cable Tie Gun House Appliance

Automatic Cable Tie Tool System SWT25100HC Cable Tie Gun House Appliance





Automatic cable tie tool used in house appliance: Wire harness bundle, plastic pipes binded





SWT25100HC Specifications



Model

SWT25100HC



Cable tie spec W2.5 * L100 mm, reel zip ties
Min banding Dia. 3 mm - 18mm
Operation speed 1.1S/pcs cable tie
Electrical power Host: AC 220V 50/60 Hz
Tool: DC24V(automatic switching)
Pneumatic pressure 5 Kg/ cm²



SWT25100HC Features



1. Reel zip ties, 5,000pcs cable ties per reel.



2. With handheld cable tie tool. Automatically bundle,thread, tighten and cut zip ties off once touch the trigger.



3. The items diameters is 2mm - 18mm. The cable tie gun can automatically cope with different diameters within the spec range.



4. Different waste material collecting methods for choice.



5. The binding forces are adjustable.



6. Could be fixed as desktop type(Add a support)



7. Electrical: AC220V,50/60Hz; pneumatic pressure: 5kg/cm² ;



8. With wheels, easy to move.



Package



1pcs / wooden case



Applications



Different Plugs Automatic Cable Tie System SWT25100HC Cable Tie Gun House Appliance 0



Other products



Model SWT25100FC SWT36150FC SWT36200FC

Cable tie spec
2.5 * 100mm 3.6 * 150mm 3.6 * 200mm

Min banding Dia.
ø2.0mm ø2.0mm ø15mm

Max banding dia for wire/tube
ø18 / ø16mm ø31 / ø30mm ø42 / ø40mm
operation speed 1.0S 1.2S 1.3S
Electrical power Host : AC 220V 50 / 60 Hz
Gun : DC48V
Power:1000W
Pneumatic pressure 5 Kg / cm²
