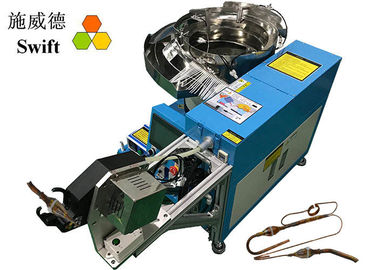

Electrical Nylon Cable Tie Machine / Bundle Loose Nylon Tie Tensioning Tool

Electrical Nylon Cable Tie Machine / Bundle Loose Nylon Tie Tensioning Tool

  • High Light

    automatic cable tie machine

    ,

    automatic zip tie machine

  • Name
    Auto Cable Tie Tool / Machine
  • Application
    Binding Wires Rapidly With Cable Ties
  • Size Of Cable Size
    W3.6 * L120mm
  • Mix Banding Dia.
    Ø3.0mm
  • Max Banding Dia. For Wire
    Ø22mm
  • Max Banding Dia. For Tube
    Ø20mm
  • Operation Speed
    1S
  • Binding Force
    Adjustable
  • Place of Origin
    Shenzhen, China
  • Brand Name
    Swift
  • Certification
    CE
  • Model Number
    SWT36120F
  • Minimum Order Quantity
    1
  • Price
    negotiation
  • Packaging Details
    wooden case
  • Delivery Time
    10-15days
  • Payment Terms
    T/T
  • Supply Ability
    100pcs/month

Electrical Nylon Cable Tie Machine / Bundle Loose Nylon Tie Tensioning Tool

Bundle Loose Nylon Ties Electrical Cable Tie Install Tool In Rapid Speed 1S



Max bundle diameter up to 22mm. Two hands free. Save 3 – 4workers cost.



Features



1. The small cable tie tool weight is 4kg. It would be fixed in the bench or assembly line.

So operator could hold items by two hands.



2. Once tread the pedal, automatically install cable ties, tightening them and cutting excess tails off.



3. Operator could adjust the binding force through turning the knob.



4. With heating system. It improve cable tie toughness when you use the machine and cable ties under 15℃.



5. It is suitable for goods fixing and packing, bags sealing and wire harness with PVC sleeve.



Product name Automatic cable tie tool
Loose cable tie Cable ties size W3.6 * L120mm
Cable ties quantity 1,000pcs cable ties per bag
Cable ties material Nylon 66
Cable tie tool Tool size L284* W240 * H149mm
Bundle speed 1.0s
Bundle diameters 3mm -22mm
Tool type Fixed type.
Gun power DC48V, auto switch
Power supply AC220V, 50/60Hz; AC110V, 50/60Hz
Pneumatic pressure 5kg/cm²
Total power 1,000W



Details



1. The vibration bowl: distribute loose cable ties and order them in line.



2. Cable tie tool: it is a small cable tie gun that would be fixed in the bench. It could automatically bundle items with cable ties once you tread the foot pedal.



3. Machine main body: with a touch screen, heating system and others.



4. PLC control and touch screen. It is easy to manage.



5. With wheels and foot cups.



6. With English manual.



Service



1. Your inquiry will be replied in 24h.



2. MOQ: 1pcs(machine)



3. Payment: 100% TT payment before ship.



4. Delivery time: 10-15working days.



5. Test your products before trial order for free if necessary.



6. Warranty: 12months.



7. Welcome to visit our factory in Shenzhen.
