|Name:||Nylon Cable Tie Bundle Machine||Application:||Banding Copper Tubes With Nylon Ties|
|Size Of Cable Size:||W2.5 * L100mm||Mix Banding Dia.:||Ø2.0mm|
|Max Banding Dia. For Wire:||Ø17mm||Max Banding Dia. For Tube:||Ø6mm|
|Operation Speed:||0.7S||Banding Force:||Adjustable, 0 - 80N|
Fixd Zip Nylon Cable Tie Machine,
20N Nylon Cable Tie Machine,
Fixd automatic zip tie machine

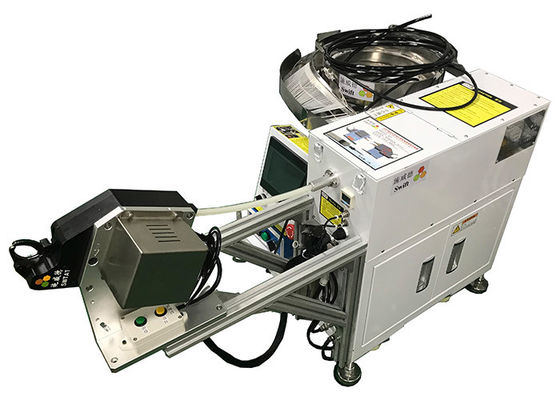

Fixd Zip Tie Gun Nylon Cable Tie Machine For Fast Bundle Copper Tubings
Fixd Zip Tie Gun Automatic Cable Tie Machine For Fast Bundle Copper Tubings
Automatically wrapping and tighten cable ties until reach the set tension force, cut excess tails off and collect them into a box. And one machine can replace 2 r 3 workers.
Advantages of automatic cable tie tool
1. The cable tie gun is fixed in the bench. So worker can hold items by two hands.
2. One key control – once tread the pedal, the machine start to work and bundle items with cable ties.
3. Using loose cable ties W2.5 * L100mm, T25100, vibration feeding, transferred into the gun.
4. The binding forces are adjustable from 20N to 80N.
5. Auto detecting jammed and dealing with it. If there is any cable tie jammed in the tool gun, the machine would stop running and clean the jammed cable tie, then restart again.
6. The bundle diameters 2mm - 17mm.
|Description||Automatic cable tie machine|
|Machine type||A fixed cable tie gun|
Automatically binding objects with cable ties.
Advantages: tightly, quickly and save money
|Cable tie spec||W2.5 * L100mm, T25100|
|Cable tie features||Straight without deformation, no tilt angle, tensile strength 8kg|
|Min bundle diameter||Ø2.0mm|
|Max bundle diameter for wire||Ø17mm|
|Max bundle diameter for tube||Ø16mm|
|The bundle speed||0.8S|
|Host machine size||L725 * W710 * H670mm|
|Cable tie gun size||L284 * W240 * H149mm|
|Electric power||AC220V - AC240V, 50/60Hz|
Main purchasing process
1. Confirm details:
1). Cable ties specifications, quality, shape. It is better to have a picture to look.
2). What is your product? This will help salesmen to give you professional suggestion about the model.
2. Quotation: Competitive price is offered.
3. Proforma invoice is offered to confirm main details.
4. Receive the payment and start to make machine.
5. Lead time is 10 – 15 business days and machine will be shipped as contracted term.
6. Confirm customers receive machines.
7. Support re-order.
|Payment||100% T/T payment before shipment|
10 – 15 business days;
3 – 5 business days for machines in stock.
|Packing||In wooden cases|
