Time Saving Automatic Nylon Cable Tie Machine For Wires Harness Industry

China Time Saving Automatic Nylon Cable Tie Machine For Wires Harness Industry supplier
Time Saving Automatic Nylon Cable Tie Machine For Wires Harness Industry supplier Time Saving Automatic Nylon Cable Tie Machine For Wires Harness Industry supplier

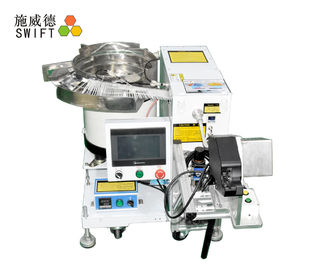

Large Image :  Time Saving Automatic Nylon Cable Tie Machine For Wires Harness Industry

Product Details:

Place of Origin: Shenzhen, China
Brand Name: SWIFT
Certification: CE
Model Number: SWT36100F

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: wooden case
Delivery Time: 10 - 15days
Payment Terms: T/T
Supply Ability: 100pcs/month
Contact Now
Detailed Product Description
Name: Nylon Cable Tie Machine Model: SWT36100F
Application: Automatic Bundling Goods Cable Tie Width: W3.6mm
Cable Tie Length: L100mm Bundling Dia.: 3mm - 18mm

Time Saving Automatic Nylon Cable Tie Machine For Wires Harness Industry



SWT36100F is a cable tie machine fixed in the bench. It could bundle objects with cable ties in 0.9S. It is faster than by human bundle them by hand.



Applications



Wires harness industry

Kinds of wirings, especially the harness with PVC sleeve



Food industry

Bags sealed , food labels, bottles fixed each other etc.



Aero industry

The motors, wire harness of aero parts and so on.



SWT36100H advantages



1 . Speed up the bundling process.



2 . Two hands to handle the work pieces because of treading the pedal.



3 . The bundling force is adjustable.



4 . 0.9seconds one cycle, automatically bundling / threading / tightening / cutting.



SWT36100H parameters



The host machine for SWT36100F
Model SWT36100F
Host size Length 690mm
Width 670mm
Height 670mm
Host weight 150kg
Temperature 40℃ - 50℃ suggest ( in cold winter )
Host power supply AC110V, 50 / 60Hz
Power 1000W
Pneumatic pressure 5kg / cm²



Cable tie gun of SWT36100F
Using cable tie Width 3.6mm * Length 100mm
Bundling Max Dia. for wire / tube Ø 18 / ø 16mm
Bundling Min Dia. Ø 3.0mm
Gun tool size L278 * W240 * H149mm
Gun weight 4.0kg/pcs
Gun tool power supply DC48V ( auto switch )



How to operate cable tie machine?



1. When you receive the machine, you need to install the vibration bowl and the gun tool to the host machine.



2. After install, select “Auto” model. The touch screen is easy to operate.



3. Pull the trigger on the gun tool, the machine would start to work.



Packing details



Packing details on SWT36100F automatic cable tie machine
The host machine / wooden case Weight/kg 167kg
Packing Size/cm L77 * W70 * H86cm
The vibration bowl / wooden case Weight/kg 70kg
Packing Size/cm L68 * W58 * H93cm
Total G.W. 237kg( estimated)



Our service



We are professional team and have our own factory. The competitive price will offer to you.



1. Your inquiry will be replied in 24hours.



2 . OEM and ODM is highly welcomed.



3 . Videos guide or telephone.



4 . There are 1 year warranty and tech support forever.



FAQ



FAQ
Questions Answer
1 . What is your MOQ? It is 1pcs for cable tie machine, 200,000pcs for nylon cable ties.
2 . Can you offer the free sample? We can offer some cable ties as sample.
3 . What is your delivery time? 10 days or 15days.
4 . Can I use other brands cable ties? Yes, you can use some to test in the first time. If no problem, you can use them continuously.
5 . What is the meaning of “F” in SWT36100F? F means the cable tie gun is fixed in the bench.
6 . Can I use different kinds of cable ties in SWT36100F? No, you must use cable ties W3.6 * H100mm. The head size of it is L6.1 * W5.9* H4.6mm.
