80N 1.0S Nylon Cable Tie Machine For Tying Cable Harness Fast

80N 1.0S Nylon Cable Tie Machine For Tying Cable Harness Fast

  • High Light

    1.0S Nylon Cable Tie Machine

    ,

    80N Nylon Cable Tie Machine

    ,

    1.0S Nylon Wire Tie Machine

  • Name
    Nylon Cable Tie Installation Machine / Nylon Wire Tie Machine
  • Bundle Capacity
    1800 - 2400pcs/h
  • Applicant Cable Tie
    C25100, W2.5mm*L100mm
  • Tension Force
    20 - 80N Adjustable
  • Bundle Speed
    1.0S Per Cable Tie
  • Cable Tie Gun
    Handheld Zip Tie Tool
  • Voltage
    AC220V, 50/60Hz, Euro Plug
  • Pneumtaic Pressure
    0.5Mpa
  • Place of Origin
    China
  • Brand Name
    SWIFT
  • Certification
    CE and RoHS
  • Model Number
    SWT25100HC
  • Minimum Order Quantity
    1pcs
  • Price
    Negotiation
  • Packaging Details
    wooden case
  • Delivery Time
    15days
  • Payment Terms
    T/T
  • Supply Ability
    100pcs/month

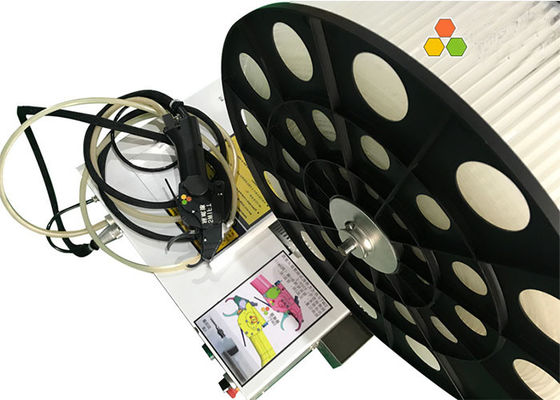

80N 1.0S Nylon Cable Tie Machine For Tying Cable Harness Fast

80N 1.0S Nylon Cable Tie Machine For Tying Cable Harness Fast



Automatic cable tie machine can deal with reel cable ties and save 2 workers and much time.



Description of nylon zip tie machine



1. There are 5,000pcs cable ties in a reel. Handler doesn’t have to load and put nylon zip ties often.



2. Using with nylon cable ties C25100, width 2.5 * length 100mm.



3. The tension forces are adjustable from 20N to 80N.



4. Bundle cycle time: 1.0S



5. The cable tie machine could bind the object with different diameters without any adjustment as long as the object diameter is within the specification described in the table.



6. Ergonomic hand shank design, comfortable to hold and operate.



7. Could be fixed as desktop type and could be applied to full automation line.



8. If there is any cable tie jammed in the tool, cable tie machine would stop running and automatically clean jammed cable ties and then restart automatically.



Information of automatic cable tie machine



Model SWT25100HC
Cable tie gun Handheld cable tie gun
Batteries included No
Batteries required No
Applicable cable tie model C25100
Applicable cable tie width 2.5mm
Applicable cable tie length 100mm
Applicable cable tie head L4.8 * W5.0 * H3.7mm
Bundle diameter 3mm - 18mm
Bundle forces 20N to 80N, adjustable
Bundle speed 1.0 S/cable tie
Bundle productivity 2400pcs/h, including the time of picking and placing products
Host machine L71*W47*H23cm
Cable tie gun L250*W102*H64mm
Cable tie weight 0.86kg
Voltage AC220V, 50/60Hz
Pneumatic pressure 5kg/cm²



Advantages of nylon cable tie installation machines



1. The waste of material could be collected into a box. It wouldn’t be thrown everywhere.



2. Handheld cable tie can be fixed in the table too, if adding a support.



3. A cable tie machine can save 2 workers or even more.



Applications



1. Wire harness in the moving board or inside home appliance



2. Sealed bags in food industry/medical industry.



3. Camouflage net/netting in material industry and military industry.



4. Christmas light bundle



Trade terms



Sea port Shenzhen, Shanghai
Payment 100% TT before ship
Lead time 15working days
Packing Wooden case
Warranty 1 year and tech support forever



Packing details



Automatic cable tie installation machine would be packed in wooden case.



80N 1.0S Nylon Cable Tie Machine For Tying Cable Harness Fast 0



FAQ



1. What is the lead time of nylon cable tie machine?



15 working days



2. What warranty period covers this cable tie machine?



1 year warranty and tech support forever



3. We want 100K white cable ties and 100K black cable ties, is it acceptable?



Yes, it is.
