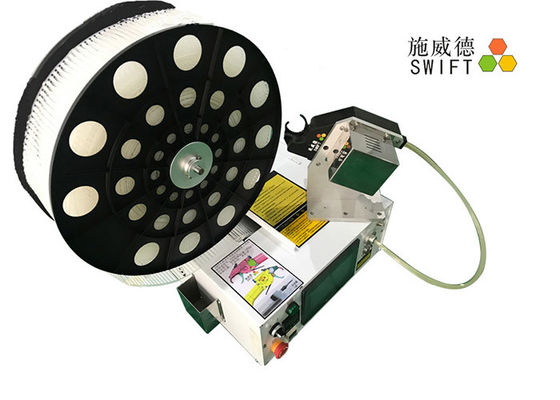

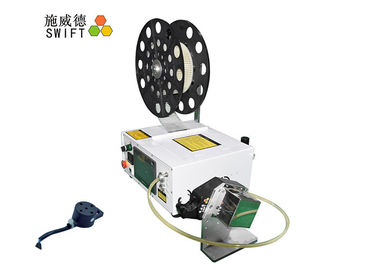

Bundle Diameter 18mm Automatic Wire Tying Tool With Fixed Zip Tie Gun

Bundle Diameter 18mm Automatic Wire Tying Tool With Fixed Zip Tie Gun

  • High Light

    automatic cable tie machine

    ,

    automatic zip tie machine

  • Model
    SWT25100FC
  • Bundle Diameters
    3mm - 18mm
  • Operate Speed
    1.1S
  • Cable Ties Size
    W2.5 * L100mm
  • Cable Ties Model
    C25100
  • Voltage
    AC220V,50/60Hz, Different Plugs
  • Place of Origin
    China
  • Brand Name
    Swift
  • Certification
    CE and RoHS
  • Model Number
    SWT25100FC
  • Minimum Order Quantity
    1pcs
  • Price
    Negotiation
  • Packaging Details
    Wooden cases
  • Delivery Time
    12 - 15days
  • Payment Terms
    100%TT
  • Supply Ability
    100pcs/month

Bundle Diameter 18mm Automatic Wire Tying Tool With Fixed Zip Tie Gun

Bundle Diameter 18mm Automatic Cable Tying System Fixed Zip Tie Gun SWT25100FC



Automatic cable tie tool uses reel cable ties. There are 5,000pcs cable ties per reel. There is a fixed cable tie gun. It could be fixed in the bench.



SWT25100FC specifications



Model SWT25100FC
Cable ties info Type Reel cable ties
Model C25100
Overall width 2.5mm
Overall length 100mm
Overall thickness 1.1mm
Tensile strength 8kg
Quantity/reel 5,000pcs
Bundle items dimension Max bundling Dia. 18mm
Min bundling Dia. 3mm
Bundling speed 1.1S
Power supply AC220V – 240V, 50/60Hz
Pneumatic pressure 5kg/cm²
Max Power 1,000W
Certificates CE and RoHS



SWT25100FC advantages



1. Using reel cable ties, 5,000pcs per reel.



2. With fixed cable tie gun, once tread foot pedal, it would thread, tighten and cut off cable ties.



3. Items diameters are from ø3mm to ø18mm.



4. The machine can adapt different diameters items. Max dia. is 18mm.



5. Tension forces are adjusted by turning knob.



6. With temperature controlling system that could protect ties toughness.



Application



Home appliance : Wire harness inside fan, air conditions, fridge



Food industry : Bags sealed, the food label fixed, crab claws bundled



Moto coil industry : Fixing wires led out of motor stator, motor coil



Packing details



Packed in a wooden case.



Item Packing size G.W./kg N.W./kg
Wooden case L61cm*W58cm*H61cm 44kg 32kg



FAQ



1. How many cable ties per reel?



There are 5,000pcs cable ties in reel.



2. What size does the machine use?



Reel cable ties: C25100, W2.5 * L100mm.
