Fast Nylon Cable Tie Machine For Packing Nylon Plastic Ties Between Tubes

China Fast Nylon Cable Tie Machine For Packing Nylon Plastic Ties Between Tubes supplier

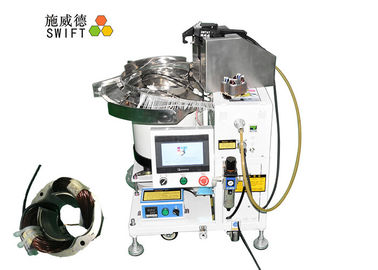

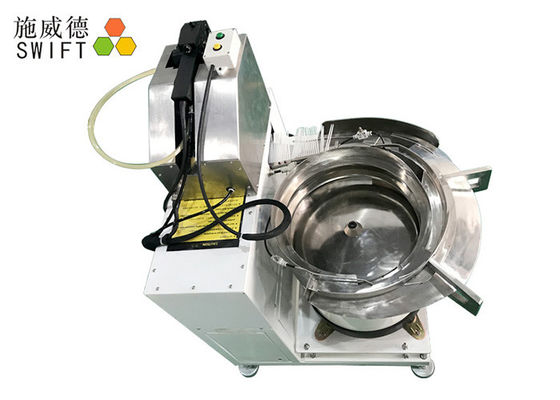

Large Image :  Fast Nylon Cable Tie Machine For Packing Nylon Plastic Ties Between Tubes

Product Details:

Place of Origin: Shenzhen, China
Brand Name: SWIFT
Certification: CE and RoHS
Model Number: SWT25080M

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: wooden case
Delivery Time: 12 - 15days
Payment Terms: 100% T/T payment
Supply Ability: 100pcs/month
Contact Now
Detailed Product Description
Application: Fast Bundle Motor Stators Nylon Cable Ties Model: SWT25080M
Cable Ties Size: W2.5 * L80mm Bundle Dia.: 5mm - 10mm
Voltage: AC220V - AC240V,50/60Hz, Different Plugs Pneumatic Pressure: 5kg/cm²

SWT25080M Nylon Cable Tie Machine For Packing Nylon Plastic Ties Between Tubes



Automatic cable tie tool SWT25080M uses nylon cable ties and automatically binds objects with them.



SWT25080M details



1. Using nylon zip ties, T25080, W2.5 * L80mm.



2. Put nylon cable ties into the vibration bowl, they would be sorted and transferred into the cable tie gun.



3. The cable tie gun is fixed. The weight is 6kg. It is more complicated than the handheld cable tie gun.

    It is for special use, such as motor coils binding.



4. Be suitable for bundling those objects which has small room for the cable tie to go through.



5. There are 4wheels, easy to move.



6.  Automatic detec the failure, the machine would stop immediately if there is any malfunction. Automatic deal with the failed cable tie and restart.



7. Voltage: AC220V - AC240V, 50/60Hz



SWT250080M parameters



Model SWT25080M
Binding dia. 5mm - 10mm
Cable ties size W2.5 * L80mm
Cable ties model T25080
Binding forces Adjustable
Binding speed 0.9S
Voltage AC220V - AC240V
Pneumatic pressure 5kg/cm2



Packing infomation



Name Packing size G.W. N.W.
The host machine L75 * W70 * H105cm 105kg 82kg
The vibration bowl L55 * W49 * H52cm 67kg 53kg



Note: The host machine must be packed in a wooden case. The vibration bowl must be packed in a wooden case. They may be crashed in a wooden case when ship.



Applications



Be suitable for motor coil and the objects which have small room for cable tis to go through.



Delivery



1. 100% TT payment before ship.



2. Delivery date: 12 - 15days.



3. Shipped by sea, air, Fedex.
