Automatic Bundling Zip Tie System 30 mm Diameter Tubes For Tying , Fixed Cable Tie Gun

Automatic Bundling Zip Tie System 30 mm Diameter Tubes For Tying , Fixed Cable Tie Gun

  • High Light

    automatic bundling machine

    ,

    wire bundling machine

  • Model
    SWT36150F
  • Binding Dia. For Tubes
    3mm - 30mm
  • Cable Ties Model
    T36150
  • Cable Ties Size
    W3.6 * L150mm
  • Operate Speed
    1.0S
  • Voltage
    AC220V,50/60Hz, Different Plugs
  • Application
    Automatic Bundling Silicone Tubes Easily And Fast
  • Cable Tie Gun Type
    Electric And Fixed Cable Tie Gun
  • Place of Origin
    China
  • Brand Name
    Swift
  • Certification
    CE, RoHS
  • Model Number
    SWT36150F
  • Minimum Order Quantity
    1pcs
  • Price
    Negotiation
  • Packaging Details
    Wooden cases
  • Delivery Time
    12 - 15days
  • Payment Terms
    T/T
  • Supply Ability
    100pcs/month

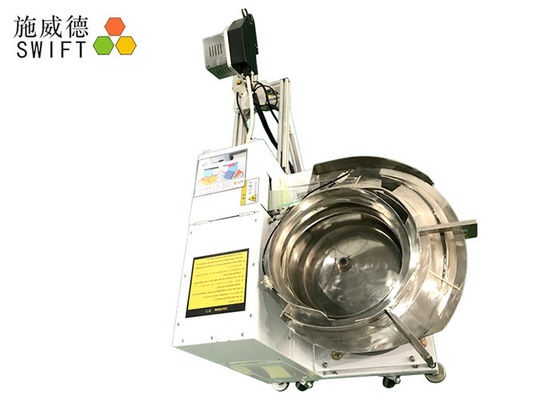

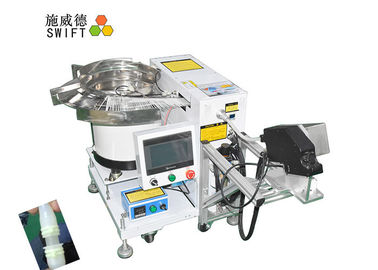

Automatic Bundling Zip Tie System 30 mm Diameter Tubes For Tying , Fixed Cable Tie Gun

Automatic Bundling 30mm Diameter Tubes Zip Tie Tool For Tying, Fixed Cable Tie Gun CE

Autotool SWT36150F, fixed cable tie gun in the bench. The binding diameters for TUBES(or similar items): 2mm - 30mm.

SWT36150F advantages

1. Use loose cable ties. Cable ties size W3.6 * L150mm. Model T36150.

2. There is a fixed cable tie gun that would fixed in the work bench.

3. Automatically wrap, tighten and cut off cable ties once touch the trigger.

4. The binding speed 1.0S

5. The binding forces are adjustable.

6. With big touch screen, Chinese and English display. It is easy to manage and set parameters.

7. Auto detecting: auto detect jammed and cleaned cable ties, then restart.

SWT36150F base data


Product nameAutomatic cable tie tool
ModelSWT36150F
CertificateCE
Tool headFixed cable tie gun
Operation speed1.0S
Cable ties used in the machineT36150, width 3.6mm * length 150mm
Cable tie thickness1.2mm
Cable tie tensile strength12kg
Bundle dia. for tubesTotal 3mm - 30mm
Pneumatic pressure5kg/cm²
Power supplyAC220 - 240V, 50/60Hz


Automatic Bundling Zip Tie System 30 mm Diameter Tubes For Tying , Fixed Cable Tie Gun 0

Applications

Big plastic tubes for water despenser/medical using/soap dispensers

Packing details

Packed in two wooden cases.

Related products



SWIFT auto cable tie tool- handheld cable tie gun
ModelSWT25080HSWT25100HSWT25120HSWT36100HSWT36120HSWT36140HSWT36150H
Cable ties(L* W)/mm80 * 2.5100 * 2.5120 * 2.5100 * 3.6120 * 3.6140 * 3.6150 * 3.6
Binding Max Dia. for wire14mm18mm22mm18mm23mm27mm31mm
Binding Min Dia.2mm3mm
