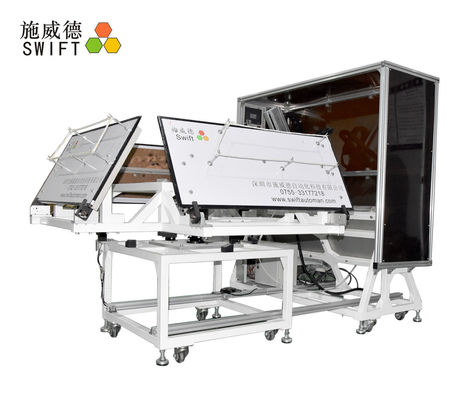

X Y Z Rotation Full Automatic Zip Tie Machine A Robot Multi Function
Full Automatic Cable Tie Tool With a robot.
Features
1. 4 axes, X, Y, Z + Rotation. X/Y/Z/R Travel: X:1200; Y:550; Z:40; R: 0 - 180°.
2. Two working fields. One is for worker to load wires and test the connecting. The other one is for the robot and cable gun to bundle wires.
3. Be suitable for bundle 1 – 10 cable ties in wires.
4. Automatic detecting if cable ties are bound successfully. If fail, the root would deal with the issue and repeat cable tie bundling.
5. Deal with loose nylon cable ties.
SWT25120H-RT1200 technical parameters
| 1 | Item | Description |
| 2 | Model | SWT25120H-RT1200 |
| Be suitable for full automation line | ||
| 3 | 4axes, X/Y/Z/R Travel | X:1200; Y:550; Z:40; R: 0 - 180° |
|
4
|
Working zone numbers | 2* cable tie gun number |
|
5
|
Cable tie gun | 1pcs |
| 6 | Fixture board | L1400 * H610mm |
| 7 | Cable ties | T25120 |
| Width 2.5mm | ||
| Length 120mm | ||
| Thicker 1.1mm | ||
|
8
|
Operation speed | 0.8S one cable tie |
| 9 |
BInding Dia.
|
Ø 2 - Ø 22mm |
| 10 | The bending forces | Be adjusted |
| 11 | Voltage | AC220V, 50 / 60Hz |
| 12 | Pneumatic pressure | 5kg/cm² |
Service
1. Free samples: we could offer free cable ties for your check.
2. Warranty: 12month and tech support forever.
3. Payment term: TT payment/negotiate
4. Delivery time: 15working days.
Our products are sold all over the world, you can rest assured.
