Payment & Shipping Terms:
|Product Name:||Robotic Full Auto Cable Tie Machine||Application:||Banding Cable Wire/plastic Tube Automatically|
|Size Of Cable Size:||2.5 * 100mm||Total Size:||L2400 * W1925 * H1620mm ( With 4wheels )|
|Rotation Table Size:||L1600 * W1600 * H1000mm||Fixture Board Size:||L1000*H450|

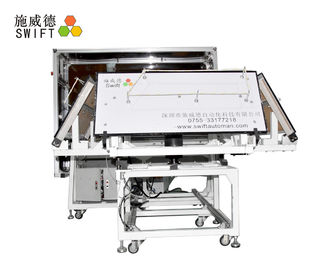

SWT55-120R Robotic Full Auto Cable Tie Machine For Binding Cable Wire With Robot
You can fix the tool head on the robot arm for full automation. The size of the fixture could be customized design.The standard fixture is 1.2m width*0.55m height.
|Product Name||full-auto cable tie machine|
|Cable tie size||
Rotation Table Size
|Fixture Board Size||
L1000*W450mm ( Max 1100*500mm )
|Total size||L2400*W1925*H1620mm(with 4wheels)|
|Max banding Dia. for tube||Ø16mm|
|Pneumatic pressure||5kg / cm2|
|Application||Banding cable wire/plastic tube automatically|
1. 4 axes, X,Y,Z + Rotation;
2. 1 robot can drive 1-3 sets of Auto Cable Tie Tools, when apply 3 pcs of cable tie Tools to 1 robot, there would be no rotation function;
3. The rotation table has the self-lock function, when the robot complete the set number of cable tie bundling, the robot would unlock automatically, and then rotate the rotation table manually to the approximate position, pedal the foot pedal switch, the robot would lock the table automatically;
4. Automatically checking every cable tie bundling process, if failed, the robot would deal with the issue and repeat cable tie bundling;
5. Automatically checking whether the rotation table is locked correctly;
6. Simplified Single axis robot is available for those harness with 1-3 pieces of cable ties, the idea is combining the Connecting testing and Cable Tie bundling process together, take use of the electrical signal of connecting to drive the cable tie Tool to bundle the cable tie automatically.
7. By enter the number to program, and allow multi-programs to be saved for different product change over;
8. One tool has two working fields. Two tools have four working fileds and three tools have 6 working fileds.
|1. Payment||100% TT payment before ship.|
|2. Delivery date||20 working days|
|3. Packages||Wooden cases|
|4. Sea port||Shenzhen|
|5. Other shipment ways||By air, DHL,Fedex|
|6. Warranty||1 year and tech support forever|
1. Where is your factory?
We are in Shenzhen, China.
2. Do you have clients who bought these machines from you?
Yes, we have. They are from Japan, Korea and China.
3. Can I set the binding force?

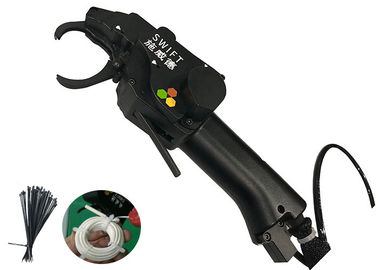

Yes, you can. In the cable tie gun, there is a knob to set the binding forces.
4. How about the warranty?
1 year warranty and tech suppor forever.
5. Will you come to our factory if we need your help?
We would visit you if the time is acceptable. We have planed to visit our clients on January, 2020.
