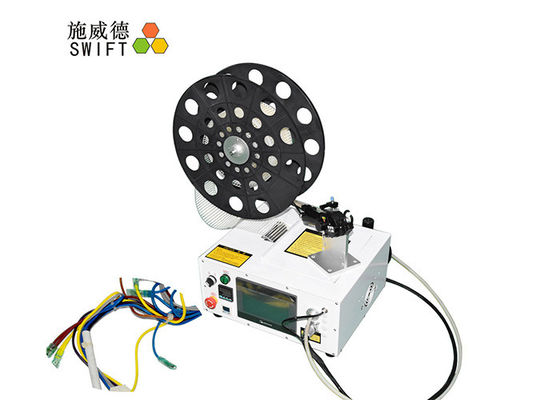

AC220V Electric Power Automatic Tie Warp System For Nylon Zip Ties On Chain Handheld Cable Tie Gun
Power automatic cable tie system machine fast bundles items with reel cable ties. Operation speed is 1S. Be suitable to use in factories.
Why choose SWIFT automatic cable tie system?
1. The binding forces, 4settings adjustable.
2. With heating function.To keep cable ties toughness even if in cold winter.
3. Touch screen, Chinese and English languages.
4. More than 300 clients from Turkey, Poland and other countries.
Production parameters
| 1 | Automatic cable tie system using cable ties reel – SWT25100HC | ||
| 2 | Description |
1. Automatically wrap, pull and tighten cable ties, cut the excess zip ties off and collect them into a box.
2. Using cable ties reel.
|
|
| 3 | Cable tie type | Cable ties on chain, C25100 | |
| 4 | Cable tie size | width | 2.5mm |
| Length | 100mm | ||
| Tie thick | 1.1mm | ||
| 5 | The binding forces | Adjustable | |
| 6 | Bundling diameter | Ø3 –ø18mm | |
| 7 | Operation speed | 1.0S | |
| 8 |
Power supply |
AC220, 50/60Hz | |
| 9 | Pneumatic pressure | 5 Kg/cm² | |
Product advantages
1. Using cable ties reel, 5,000pcs/reel.
2. It could be applied to for completely automation line by designing a robot.
3. Ergonomic, lightweight cable tie gun is useful to reduce operator fatigue.
4. Automatic error detection and dealing with it. The machine could find and deal with the error bundling, then restart.
Applications
Wire harness of Electronics industry, Automotive industry, Solar energy sector
Trade terms
| 1. Payment term | 100%TT payment before shipment. |
| 2. Lead time | 10 -15working days after receive payment. |
| 3.Shipment ways | By sea, by air, by DHL/UPS. |
| 4.Price | EXW or CIF |
| 5.Sea port | Shenzhen |
Our products are sold all over the world, you can rest assured.
