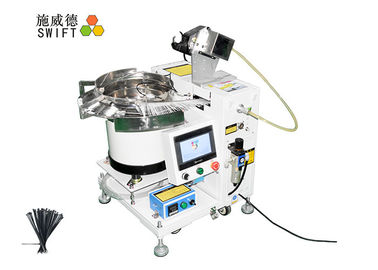

Loose Cable Ties 120mm Automatic Cable Tie Tying System With A Fixed Zip Tie Gun Assembly
Automatically bundle. Save cost and time. 1.0second one cable tie. Faster than by hand bundle.
Automatic cable tie tying system advantages
1. The cable tie gun is fixed in the bench.
2. One key control – once tread the pedal, the machine start to work and bundle items with cable ties.
3. The binding speed is 1s.
4. Using zip ties W2.5 * L120mm, vibration feeding, transferred into the gun.
5. The binding forces are adjustable.
6. Auto detecting jammed and dealing with it. If there is any cable tie jammed in the tool gun, the machine would stop running and clean the jammed cable tie, then restart again.
7. PLC control and touch screen. English and Chinese languages.
8. With temperature control system. It helps to keep the toughness of nylon cable ties when the room temperature is under 15℃.
Technical parameters
Model | SWT25120F |
Description | Automatic cable tie tying system |
Machine type | A fixed cable tie gun |
Advantages |
1. Automatically bundle,cut off zip ties. 2. The bundle speed is 1S. It is faster than by hand. 3. It is easy to adjust the binding forces. Just turn the knob in the fixed cable tie gun. 4. Dealing with loose cable ties. |
Cable tie spec | Width 2.5 * Length 120mm |
Cable tie model | T25120 |
Min bundle diameter | Ø2.0mm |
Max bundle diameter for wire | Ø20mm |
The bundle speed | 1.0S |
Host machine size | L72 * W71 * H67cm |
Cable tie gun size | L28 * W24 * H14cm |
Electric power | AC220V - AC240V, 50/60Hz |
Pneumatic pressure | 0.5Mpa |
Main purchasing process
1. Inquiry: Please send email to us, or call us by phone/Skype/WhatsApp.
2. Confirm details:
1). Cable ties size that your factory is using.
2). What is your product? Pls send a picture to us and we will give you professional suggestion about the model.
3. Quotation: Competitive price is offered and accepted.
4. Proforma invoice is offered to confirm main details.
5. Receive the payment and start to make machine.
7. Lead time is 10 – 15 business days.
8. Confirm customers receive machines.
9. Support re-order.
Trade terms
Payment | 100% T/T payment before shipment |
Price | EXW |
Delivery time |
10 – 15 business days; |
Sea port | Shenzhen |
By express | DHL/UPS/FEDEX |
Packing | In wooden cases |
FAQ
1. How many tension forces?
There are 4 forces to chose, including 2kg, 4kg, 6kg and 8kg.
2. Can I use other cable ties in the machine?
No, if you don't use swift cable ties T25120, the machine must be customized according to your cable ties.
3. What is the warranty?
1year warranty and tech support forever.
