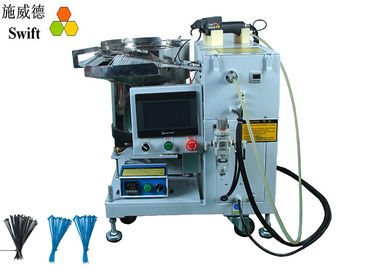

Automatic Cable Tie Tool System For Wires And Cables SWT25080H Nylon Zip Ties 80mm
Automatic cable tie tool system - Wire harness bundle with nylon zip ties(Loose).
Automatic cable tie tool advantages
1. Using loose cable ties, vibration feeding, transferred into the cable tie gun via hose.
2. Pulling the trigger, automatically bundle, thread, pull and tighten, cut cable ties off.
3. The waste materails could be colletced into a box.
4. Automatically detect if it is successful to bundle the cable tie. Or it would stop and deal with the failed cable tie.
5. Be comfortable to hold and operate the gun head.
6. The binding forces are adjustable.
7. Voltage: AC220V, 50/60Hz.
Automatic cable tie tool technical data.
| Name | Automatic cable tie tool | Model | SWT25080H |
| Using type | Handheld cable tie gun | Advantages | Bundle nylon zip ties fast |
| Cable ties model | T25080 | Bundle items diameters | 2mm - 10mm |
| Cable tie width | 2.5mm | Bundle speed | 0.7S/cable tie |
| Cable tie length | 80mm | Pneumatic pressure | 5 kg / cm² |
| Cable ties material | Nylon 6.6 | Voltages | AC220V, 50/60Hz |
Applications
Rail transportation sector
Electrical installation
Food industry
Wiring harness
Package
The machine would be packaged in wooden cases. One for the machine, the other one is for the vibration bowl.
Our service
1. We offer 1 year warranty and tech support forever.
2. We offer online guide on guiding you operate the machine. In China mainland, we can go to your factory and install the machine for you.
