SWT25100F Fixed Automatic Cable Tie Installation Tool Wire Cable Aseembly Line

China SWT25100F Fixed Automatic Cable Tie Installation Tool Wire Cable Aseembly Line supplier

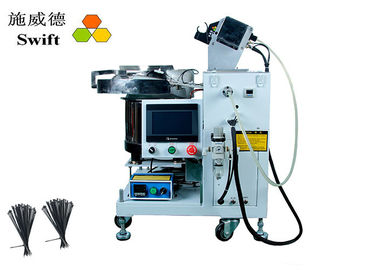

Large Image :  SWT25100F Fixed Automatic Cable Tie Installation Tool Wire Cable Aseembly Line

Product Details:

Place of Origin: Shenzhen, China
Brand Name: SWIFT
Certification: CE
Model Number: SWT25100F

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: wooden cases
Delivery Time: 10days
Payment Terms: T/T
Supply Ability: 100pcs / month
Contact Now
Detailed Product Description
Product Name: Automatic Cable Tie Tool Model: SWT25100F
Cable Tie Width: 2.5mm Cable Tie Length: 100mm (4inch)
Binding Dia: 2 - 18mm Power Supply: AC220V,50/60Hz
Bunndle Speed: 0.9S Per Cable Tie Application: Auto Bundle Cable Ties In Fast Speed

Automatic Cable Tie Tool SWT25100F Fixed Cable Tie Gun In Wire Cable Aseembly Line



Cable tie gun of SWT25100F can be fixed in the bench or assembly line. Worker holds the items by two hands.



SWT25100F advantages



1. Tread foot pedal, automatically treading, pulling and tightening, cutting off cable ties.



2. The whole operations take only 0.9S.



3. Clean cutting edge prevents dangerously sharp cable tie ends.



4. The waste material can be collected into a box.



5. There are 4 binding forces and they are adjustable.



6. Touch screen, easy to manage.



How should I know SWT25100F is what I need?



1. Pls check your product bundle diameter(Max). SWT25100F can bundle the max diameter is 18mm for wires/cable.



2. Or check your cable tie size. SWT25100F deals with nylon cable ties W2.5 * L100mm ONLY.



3. Choose 1 or 2 and give your product picture to our sale team, we would suggest the best one for you based on our experience.



SWT25100F base data



No. 1 Description Cable tie clamping tool(automatic threading and tightening cable ties)
2 Brand SWIFT
3 Model SWT25100F
4 Features/advantages

1. Use loose cable ties, W2.5 * L100mm.

2. Automatically binding cable ties tightly. Hands don’t need to touch nylon wire ties.

3. Easy to operate. Tread foot pedal, the machine would begin to bundle.

4. The binding forces are adjustable.

5. It takes 0.9S to bundle one cable tie.

5 Cable ties details Ties type Bulk cable ties
Tie model T25100 loose cable ties
Tie width 2.5mm
Tie length 100mm
Tie thickness 1.1mm
Tensile strength 8kg
Quantity/bags 1,000pcs
6 Cable tie gun details Power DC48V auto switch
Size L25 * W24 * T15cm
Tension forces Adjustable by turn knob
7 The bundle diameter 2mm -18mm
8 The bundle speed 0.9S per cable tie
9 Power supply AC110V/220V, 50/60Hz
10 Pneumatic pressure 5kg/cm²
11 Max Power 1,000W



Trading details



1. 70% TT deposit before production and 30% balance payment before ship.



2. Price: EXW, Fob Shenzhen, CIF etc.



3. Lead time: normally 10 – 15days.



4. Shipment ways: by sea, by air.



Swift in Wire show at Wisconsin.



SWT25100F Fixed Automatic Cable Tie Installation Tool Wire Cable Aseembly Line
