4 Inch Automatic Cable Tie Tool Auto Cable Tie Gun In Home Appliance Using
SWT25100H is automatic cable tie tool. It automatically wrap, tighten, cut off cable ties after bundle tightly. Worker holds the cable tie gun and pull the trigger, then it start to work. The bundle speed is up to 0.7S per cable tie.

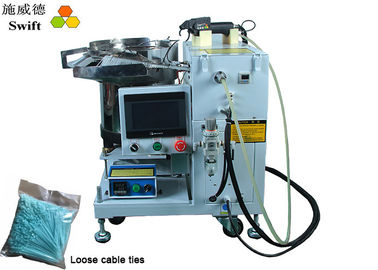

SWT25100H Automatic cable tie gun machine
| SWT25100H components | Description |
| 1. A handheld gun | Auto bundling items, without hands threading and cutting. |
| 2. A vibration bowl | Sort nylon cable ties line them one by one |
| 3. The host machine | Including PLC, touch screen and other parts. The cable tie gun and the bowl both are connected to the host machine. |
Cable tie gun advantages
1. Bundle large quantity bulk cable ties a time fast.
2. The bundle speed is 0.7S per cable tie.
3. Pull the trigger, automatic winding and insertion, tensioning and cutting.
4. The waste materials would collected into a box through the waste collection system.
5. Worker can adjust the binding force at any time(Turn a knob).
6. Be applied to full automation line.
SWT25100H base data
| No. 1 | Description | Cable tie tensioning tool | ||||
| 2 | Brand | SWIFT | ||||
| 3 | Model | SWT25100H | ||||
| 4 | Features/advantages |
1. Without hands threading, pulling and tightening, cutting, the machine would do these actions. 2. All operations take 0.7S. 3. Provide a clean cut without sharp cable tie protrusions. 4. Temperature control system to protect cable ties toughness in cold environment. 5. Touch screen(Chinese and English display) |
||||
| 5 | Cable ties details | Ties type | Nylon cable ties | |||
| Tie model | T25100 | |||||
| Tie width | 2.5mm | |||||
| Tie length | 100mm/4inch | |||||
| Tie thickness | 1.1mm | |||||
| Tensile strength | 8kg | |||||
| Quantity/bags | 1,000pcs | |||||
| 6 | Max bundling Dia. for wire | 18mm | ||||
| 7 | Max bundling Dia. for tube | 16mm | ||||
| 8 | Min bundling Dia. | 2mm | ||||
| 9 | Bundling speed | 0.7S | ||||
| 10 | Cable tie gun details | Power | DC24V | |||
| Size | L25 * W10 * T6.4cm | |||||
| Tension forces | Adjustable by turn knob(5settings) | |||||
| 11 | Power supply | AC220V, 50/60Hz; AC110V, 50/60Hz | ||||
| 12 | Pneumatic pressure | 5kg/cm² | ||||
| 13 | Max Power | 1,000W | ||||
| 14 | Certificates | CE, RoHS | ||||
Applications
Aircraft wiring, Auto wiring, harness wiring of white goods etc.
FAQ
1. How can I know if the machine is suitable to bundle my items?
There are three ways to confirm which automatic cable tie gun is suitable.
1.Pls check your product max bundle diameter.
2.Tell us your cable ties size.
3.Please send the items to our factory.
2. What is the payment term?
We accept TT payment. If you have other requires, please contact our sales team.
3. Is there anything wrong if I use other brand cable ties?
It is not sure. It is no problem when you use T25100 cable ties. If use other brands, customize one is better.
Our products are sold all over the world, you can rest assured.
