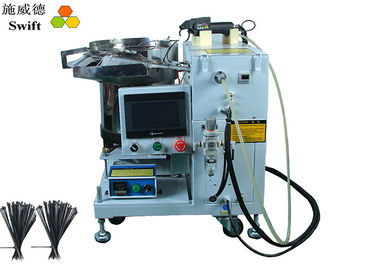

Electrical Pneumatic Automatic Cable Tie Gun For Bundle Fluid Pans CE
Achieving fast bundle, improving the work efficiency. It takes 0.7S to bundle single cable tie, including wrapping, tightening and cutting off cable tie.
SWT25100H Features
1.Placing the loose-packed Cable Ties into the vibrating plate, passing the ties to the gun thought the pipe.
2.pulling the trigger to feed, winding, tighten,cut the tie and throw the waste materials automatically.
3.All the operation steps can be done with in 0.7 second.
4.The waste materials can be collected to box by recovery system automatically.
5.Easy to hold and will not feel tired because of the light and handy design of the gun.
6.The degree of tightness and strength can be adjusted by knob.
7.Hanheld cable tie gun can adapt different diameter objects and bundle automatically.
8. Power supply: AC220V/AC110V, 50/60Hz; Tool head output: DC24V, Max. 1,000W.
9. Two functions available(Handheld cable tie gun or Fixed cable tie gun). If you want to use it in the bench, pls inform us in advance.
.
Certification and Approvals
CE and RoHS
Applications
Bundling Pipes; Securing Hoses; Organising Cable; Cable Management
SWT25100H Base data
| Name | Autotool system SWT25100H |
| Description | Automatic cable tie system |
| Features and advantages |
Use loose cable ties, Electrically operated, Automatic bundling, Automatic adapt different sizes goods |
| Bench mount kit | A metal support, a foot pedal(if need, please inform us in advance) |
| Cable ties | T25100 bulk cable ties |
| Material | Nylon |
| Width | 2.5mm |
| Length | 100mm |
| Quantity/bag | 1,000pcs/bag |
| Usage/per time in vibration bowl | 200pcs – 300pcs better |
| Bundling Max Dia. for wire | Ø18.0mm |
| Bundling Max Dia. for tube | Ø16.0mm |
| Bundling Max Dia. | Ø2.0mm |
| Bundling speed | 0.7S/cable tie |
| Operation | Electrical and pneumatic |
| Tool head power | DC24V, automatic transfer |
| Power supply | AC110V/AC220V, 50/60Hz |
| Pneumatic pressure | 5kg/cm² |
| Max power | 1,000W |
| Tension forces | Adjustable |
Packing details
Automatic cable tie machine would be packed in two wooden cases.
Trade terms
1. Payment ways: 100%TT available.
2. 100%payment confirm before ship.
3. Price: FOB Shenzhen, EXW-price, CIF etc.
4. Transportation: by sea, by air, by express or others.
Other products
Every cable ties size is matched with different automatic cable tie tool. One size, one machine.
