4 Inch Automatic Cable Tie Machine , Handheld Cable Tie Gun For Wire Harness Bundle

4 Inch Automatic Cable Tie Machine , Handheld Cable Tie Gun For Wire Harness Bundle

  • High Light

    automatic cable tie machine

    ,

    automatic zip tie machine

  • Product Name
    Handheld Cable Tie Gun
  • Model
    SWT25100HC
  • Wire Ties
    C25100(reel Cable Ties)
  • Tie Width
    2.5mm
  • Tie Length
    4inch(100mm)
  • Bundle Diameter
    2 - 18mm
  • Bundle Speed
    0.7S/cable Tie
  • Power
    1000W
  • Place of Origin
    Shenzhen, China
  • Brand Name
    SWIFT
  • Certification
    CE
  • Model Number
    SWT25100HC
  • Minimum Order Quantity
    1pcs
  • Price
    negotiation
  • Packaging Details
    packed in wooden cases
  • Delivery Time
    11days
  • Payment Terms
    100% T/T payment
  • Supply Ability
    100pcs/month

4 Inch Automatic Cable Tie Machine , Handheld Cable Tie Gun For Wire Harness Bundle

Automatic Cable Tie System, Handheld Cable Tie Gun For Wire Harness Bundle 4inch Cable Ties

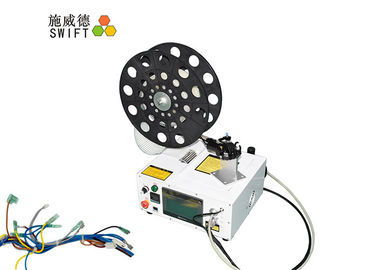

SWT25100HC components



SWT25100HC components Description
1. a handheld gun Auto bundling items without hands threading and cutting.
2. PLC and touch screen Logic control, parameter settings
3. The feeding hose  Transfer nylon cable ties one by one
4. Distribution system Convey cable ties one by one



Advantages



1. Reel cable ties, 4inch length. There are 5,000pcs for one reel.



2. The whole operation takes only 1.0S. The fast speed is 0.5S.



3. One machine replace 4 – 5workers, save cost.



4. With the function of automatic detecting jammed cable ties and dealing with it.

Pls find this website below,

https://www.youtube.com/watch?v=m2i_n_gQSLQ



5. PLC control and Touch screen.



SWT25100HC base data



No. 1 Description Cable tie tensioning tool
2 Brand SWIFT
3 Model SWT25100HC
  Features/advantages

1. Fast bundling cable ties, 1.0second per cable tie!

2. Provide a clean cut without sharp cable tie protrusions.

3. Temperature control system to protect cable ties toughness in cold environment.

4. Touch panel with dual languages, Chinese and English.

4 Cable ties details Ties type Reel cable ties
Tie model C25100 (SWIFT brand)
Tie width 2.5mm
Tie length 4inch
Tie thickness 1.1mm
Tensile strength 8kg
Quantity/reel 5,000pcs
5 Weight of handheld cable tie gun 0.86kg
6 Max bundling Dia. for wire 18mm
7 Max bundling Dia. for tube 16mm
8 Min bundling Dia. 2mm
9 Bundling speed 1.0S
10 Cable tie gun details Power DC24V auto transferred
Tension forces Adjustable by turn knob(5settings)
11 Power supply AC220V, 50/60Hz
12 Pneumatic pressure 5kg/cm²
13 Max Power 1,000W
14 Certificates CE, RoHS
