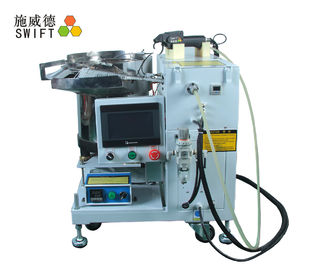

4 Inch Automatic Nylon Cable Tie Machine For Bundle Quickly Save Cost
SWT25100H components
| SWT25100H components | Description |
| 1. a handheld gun | Auto bundling items without hands threading and cutting. |
| 2. A vibration bowl | Sort materials nylon cable ties |
| 3. PLC and touch screen | Logic control, parameter settings |
| 4. Wire, switch, connectors | Signal transferred |
| 5. Distribution system | Convey cable ties one by one |
Advantages
1. Bulk cable ties, 4inch length.
2. One machine replace 4 – 5workers, save cost.
3. Pull the trigger, automatic winding and insertion, tensioning and cutting.
4. The whole operation takes only 0.7S. The fast speed is 0.5S.
5. Automatic detecting jammed. If zip ties jammed in the cable tie gun, the machine would automatically clean jammer ties, then restart.
SWT25100H base data
| No. 1 | Description | Cable tie tensioning tool | ||||
| 2 | Brand | SWIFT | ||||
| 3 | Model | SWT25100H | ||||
| Features/advantages |
1. Fast bundling cable ties, only 0. 7per cable tie! 2. Provide a clean cut without sharp cable tie protrusions. 3. Temperature control system to protect cable ties toughness in cold environment. 4. Touch panel with dual languages, Chinese and English. |
|||||
| 4 | Cable ties details | Ties type | Bulk cable ties | |||
| Tie model | T25100 (same size/good quality can be used in this machine) | |||||
| Tie width | 2.5mm | |||||
| Tie length | 4inch | |||||
| Tie thickness | 1.1mm | |||||
| Tensile strength | 12kg | |||||
| Quantity/bags | 1,000pcs | |||||
| 5 | Usage/per time in vibration bowl | 220pcs enough | ||||
| 6 | Max bundling Dia. for wire | 18mm | ||||
| 7 | Max bundling Dia. for tube | 16mm | ||||
| 8 | Min bundling Dia. | 2mm | ||||
| 9 | Bundling speed | 0.7S | ||||
| 10 | Cable tie gun details | Power | DC24V auto transferred | |||
| Tension forces | Adjustable by turn knob(5settings) | |||||
| 11 | Power supply | AC220V, 50/60Hz; AC110V, 50/60Hz | ||||
| 12 | Pneumatic pressure | 5kg/cm² | ||||
| 13 | Max Power | 1,000W | ||||
| 14 | Certificates | CE, RoHS | ||||
FAQ
1. Q : Can you provide Certificate of Origin?
A:Yes,Sure.We can offer it.And it's free.
2. Q : What about your delivery time?
"A: We have a lot of products in stock.We can send the stock products in about 4 work days.
If without stock,or stock is not enough, we will check the delivery time with you."
3. Can I use other brand cable ties?
Yes, you can. But it is better to use swift cable ties. They are designed for machine using.
Our products are sold all over the world, you can rest assured.
