Ty - Wrapping Handheld Automatic Cable Tie System 0.8S Bundle One Zip Tie

China Ty - Wrapping Handheld Automatic Cable Tie System 0.8S Bundle One Zip Tie supplier

Large Image :  Ty - Wrapping Handheld Automatic Cable Tie System 0.8S Bundle One Zip Tie

Product Details:

Place of Origin: Shenzhen, China
Brand Name: SWIFT
Certification: CE and RoHS
Model Number: SWT36100H

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: two wooden cases
Delivery Time: 10 - 15days
Payment Terms: T/T
Supply Ability: 100pcs/month
Contact Now
Detailed Product Description
Name: Automatic Cable Tie Tool For Bundling Wires Model: SWT36100H
Using Type: Handheld Cable Tie Gun Cable Ties: W3.6 * L100mm ( Loose Package)
Min Binding Diameter: 3mm Max Binding Diameter: 18mm For Wires; 16mm For Tube

Small Handheld Cable Tie Tool Automated Ty-Wrapping Tool 0.8S Bundle One Zip Tie



Automatic bundle loose cable ties W3.6 * L100mm, 2,000 – 4,000pcs cable ties in 1hour.

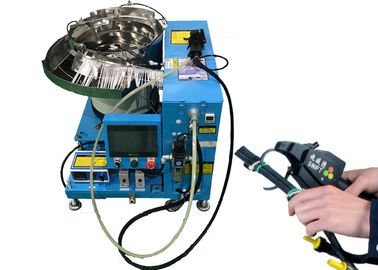

Automatic Cable Tie System​ Features



1. Vibration feeding, transferred to the cable tie tool hose.



2. Pulling the trigger, automatically binding, tightening cable ties, then cut the excess tails off and collect them into a box.



3. Bundle one cable tie takes only 0.8S. The machine can bundle 2,000 – 4,000 cable ties in 1h.



4. The binding force is adjustable.



5. PLC control and touch screen.



6. The machine can count how many cable ties that are bundled successfully.



Product name Automatic cable tie tool
Loose cable tie Cable ties size W3.6 * L100mm
Cable ties quantity 1,000pcs cable ties per bag
Cable ties material Nylon 66
Cable tie tool Tool size L250 * W102 * H78mm
Bundle speed 0.8s
Bundle diameters 3mm -18mm
Gun power DC24V
Power supply AC220V, 50/60Hz; AC110V, 50/60Hz
Pneumatic pressure 5kg/cm²
Total power 1,000W



Automatic Cable Tie System​ Applications



All kinds of cable binding, such as wires of kitchen appliance, fans, air-conditions etc.



The food labels binding.



The joints fixing of gas and liquid.



Why choose us?



1. Professional manufacturer of this machine. We have the machine patent in China.



2. We have a rich experienced R and D department. We only make this kind of machine and have more than 7years experience.



3. We guarantee 5million cycles maintenance free.



4. We could offer the face-to-face training.



FAQ



1. What is your MOQ?

MOQ: 1pcs for machine.



2. Have you exported the machine to Euro before?

Yes, we have more than 300 clients from all over the word. For example, Poland, Turkey, Netherland, Italy and USA etc.



3. What certificates do you have?

CE, RoHS and ISO9001 etc.



Other brand automatic cable tie tool comparison



Ty - Wrapping Handheld Automatic Cable Tie System 0.8S Bundle One Zip Tie
