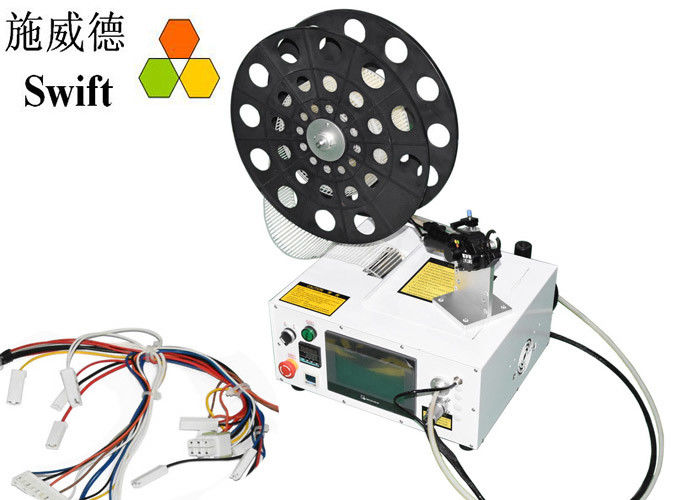

Auto Bundle Automatic Cable Tie System With Small Cable Tie Gun Ø20mm - Ø42mm

China Auto Bundle Automatic Cable Tie System With Small Cable Tie Gun Ø20mm - Ø42mm supplier

Large Image :  Auto Bundle Automatic Cable Tie System With Small Cable Tie Gun Ø20mm - Ø42mm

Product Details:

Place of Origin: China
Brand Name: SWIFT
Certification: CE
Model Number: SWT36200HC

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: wooden case
Delivery Time: 10 - 15days
Payment Terms: T/T
Supply Ability: 100pcs/month
Contact Now
Detailed Product Description
Product Name: Automatic Cable Tie System Model: SWT36200HC
Function: Automatic Bundle Items With Cable Ties Cable Ties Reel: W3.6 * L200mm
Bundling Dia.: Ø20mm - Ø42mm Tie Model: C36200

Auto Bundle Automatic Cable Tie System For Wirings Bundle, Small Cable Tie Gun



Small cable tie gun, weight 0.91kg; The bundle speed 1.3S per cable tie. 4,000 cable ties per reel.



Technical data



Product name Automatic cable tie system
Cable tie reels Cable ties size W3.6 * L200mm
Cable ties quantity 4,000pcs cable ties per reel
Cable ties material Nylon 6.6
Cable tie gun/tool Tool size L271 * W125 * H74mm
Bundle speed 1.3s
Bundle diameters 20mm - 42mm
Gun power DC24V
Power supply AC220V, 50/60Hz
Pneumatic pressure 5kg/cm²
Total power 1,000W



Features



1. No vibration feeding because the cable tie machine uses strip cable ties.



2. The cable tie gun is as handheld type or fixed type.



3. The binding forces are adjustable.



4. Automatically detecting cable tie jam. If cable tie is jammed in the tool or the hose, it would stop the machine, clean the jammed cable tie and restart it.



5. Automatically detecting the failure. If the tool head can’t handle cable tie successfully, it would stop and deal with cable tie by itself.



6. The collecting waste system. After cutting off cable tie, the tail waste will be collected into a box.



SWIFT service



Pre-sales service

1. Reply your inquiry in time and offer you professional suggestions.



2. If any doubts on automatic cable tie machine, please contact us any time.



3. Offer the quotation.



After payment, we will arrange the production in time. The lead time is 10days if there are enough raw materials.



After-sales service

1. 1 year warranty



2. Technical support in whole life. You can contact our salesman in wechat/skype/whatsapp.



Applications



Auto bundle kinds of items with cable ties.



FAQ



1. What is the warranty?

1 year.



2. What is the difference, compared with Panduit 4.0 cable tie system?



Swift automatic cable tie tool is more stable than it and has more functions, such as the heating function, auto detecting jam and auto detecting failed.



We promise 5million cycles maintenance free.



3. What is the max bundle diameter?

Wire harness Max bundle diameter is 42mm.



Cable tie reels



Auto Bundle Automatic Cable Tie System With Small Cable Tie Gun Ø20mm - Ø42mm
