Desktop Type Nylon Cable Tie Machine Applicator No Touch Screen Durable

Desktop Type Nylon Cable Tie Machine Applicator No Touch Screen Durable

  • High Light

    binding wire tying machine

    ,

    cable bundling machine

  • Name
    Automatic Cable Tie Machine
  • Model
    SWT25080D
  • Cable Tie Type
    W2.5 * L80mm (loose)
  • Power Supply
    AC220V, 50 / 60Hz
  • Pneumatic Pressure
    3kg/cm²
  • Application
    Binding And Cutting Off Cable Ties
  • Place of Origin
    China
  • Brand Name
    Swift
  • Certification
    CE and RoHS
  • Model Number
    SWT25080D
  • Minimum Order Quantity
    1pcs
  • Price
    Negotiation
  • Packaging Details
    wooden case
  • Delivery Time
    10 - 15days
  • Payment Terms
    100% T/T payment
  • Supply Ability
    100pcs/month

Desktop Type Nylon Cable Tie Machine Applicator No Touch Screen Durable

Desktop Type Automatic Cable Tie Applicator In Lower Price, Durable

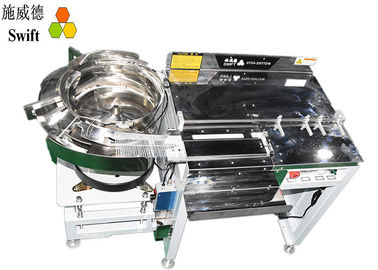

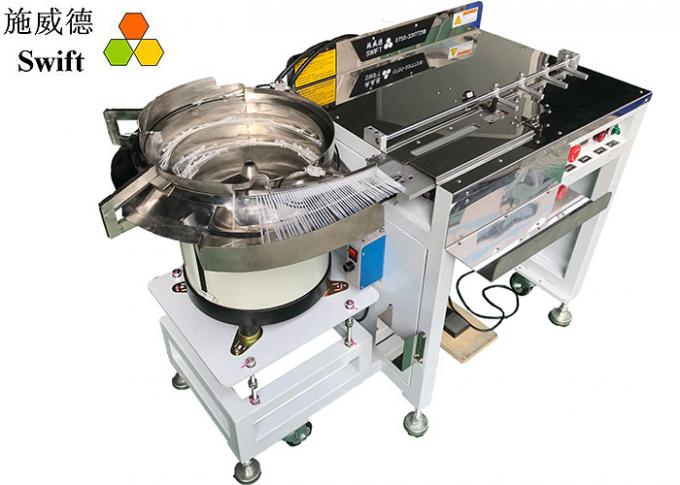

This machine is a desktop type of nylon cable tie machine. There is no the handheld cable tie gun, no touch screen, no heating function. The price is lower than other types.

Features

1. Dealing with loose cable ties, W2.5 * L80mm.

2. Vibration feeding, transferred cable ties to the position of jaw.

3. Counter function.

4. The bundling speed is up to 0.8second. That means it takes 0.8S to wrap, tighten cable tie and cut it off.

5. The binding forces are adjustable and it would keep same forever. It is very stable.

6. There are 4 wheels and 6 foot cups.

7. Be suitable for binding simple wire harness. The max binding diameter: 12mm.

Product diameters


ModelSWT25080D
Cable ties( Loose package)W2.5 * L80mm
Tensile strength8kg
Min binding diameter2mm
Max binding diameter for wires12mm
Max binding diameter for tube10mm
MaterialNylon PA66
Power supplyAC220V – AC240V, 50/60Hz
Pneumatic pressure3kg/cm²
Machine size

Length: 1040mm
Width: 640mm
Height: 750mm
Weight: 120kg(with wheels)


Application

Suitable for simple cable bundling, small quantity of lots different products.

Trade details

1. Payment: 100% TT.

2. Lead time: 10 – 15 working days.

3. Machine is packed in export wooden case.

4. Sea port: Shenzhen.

5. Buyers can choose to send the machine by sea, by air or by express.

Related products


ModelSWT25100D
Cable ties( Loose package)W2.5 * L100mm
Tensile strength8kg/18LB
Min binding diameter2mm
Max binding diameter for wires16mm
Max binding diameter for tube14mm
MaterialNylon Polyamide 66
Power supplyAC220V – AC240V, 50/60Hz, Euro plug
Pneumatic pressure3kg/cm²
Machine size

Length: 1040mm
Width: 640mm
Height: 750mm
Weight: 120kg(with wheels)
