Desktop Type Nylon Cable Tie Machine Pneumatic Pressure 3kg/cm² For Cable Bundle

China Desktop Type Nylon Cable Tie Machine Pneumatic Pressure 3kg/cm² For Cable Bundle supplier
Desktop Type Nylon Cable Tie Machine Pneumatic Pressure 3kg/cm² For Cable Bundle supplier Desktop Type Nylon Cable Tie Machine Pneumatic Pressure 3kg/cm² For Cable Bundle supplier

Large Image :  Desktop Type Nylon Cable Tie Machine Pneumatic Pressure 3kg/cm² For Cable Bundle

Product Details:

Place of Origin: China
Brand Name: Swift
Certification: CE and RoHS
Model Number: SWT25080D

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: wooden case
Delivery Time: 10 - 15days
Payment Terms: 100% T/T payment
Supply Ability: 100pcs/month
Contact Now
Detailed Product Description
Name: Automatic Cable Tie Machine Model: SWT25080D
Cable Tie Type: W2.5 * L80mm (loose) Power Supply: AC220V, 50 / 60Hz
Pneumatic Pressure: 3kg/cm² Application: Binding And Cutting Off Cable Ties

Desktop Type Nylon Cable Tie Machine For Cable Bundle, Cable Tie Tool

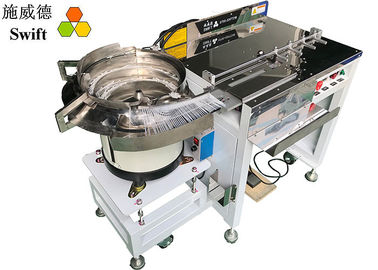

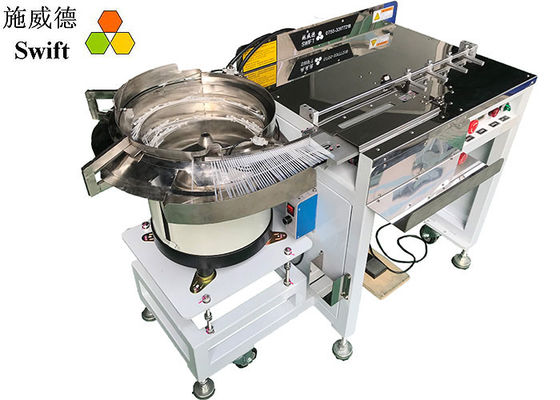

Nylon cable tie machine SWT25080D is desktop type. Operator operates the machine in front of it.

Nylon cable tie machine advantages

1. Using loose cable ties. Put them into the vibration bowl.

2. The binding forces are adjustable.

3. Foot pedal control. When operator tread the pedal, machine would start to work and automatically wrap, pull and tighten cable ties, cut them off and collect them into a waste tank.

3. Deal with simple cables or harness.

4. With foot cups and wheels.

5. With alarm function.

6. Power supply: AC220V, 50/60Hz.

7. Pneumatic pressure: 3kg/cm².

Nylon cable tie machine specifications


ModelSWT25080D
DescriptionThis machine can automatically bundle items with cable ties.
Cable ties specificationW2.5 * L80mm
Tensile strength8kg
Max bundle diameter for wireØ12mm
Max bundle diameter for tubeØ10mm
Min bundle diameterØ2mm
Power supplyAC220V 50/60Hz
Pneumatic pressure3kg/cm²


Applications

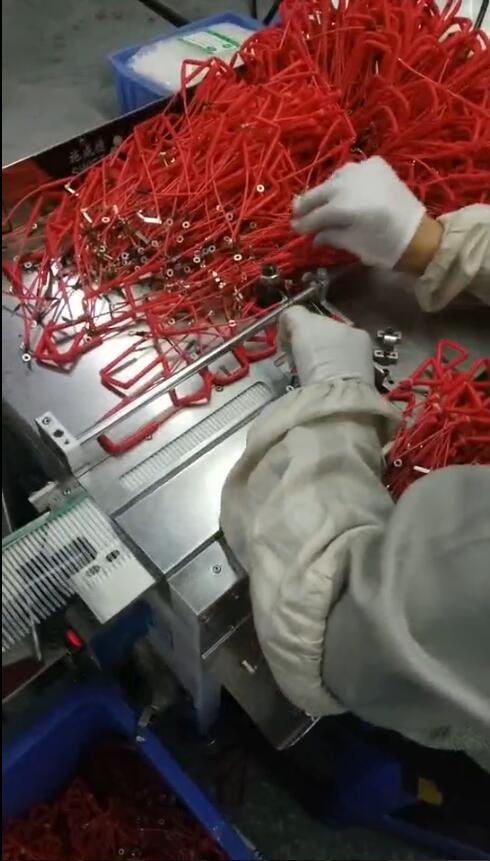

Simple cables bundle.

Main purchasing procedure

1. Send inquiry to our sales team.
2. Confirm machine details, such as cable ties specifications, your products, the binding force and others.

3. Confirm proforma invoice.

4. Receive payment and start to produce machine.

5. Arrange the shipment.

6. Customers receive machines.

7. Re-order.

Packing details

Machine size: L1040 * W640 * H750mm
Packing size: L1340 * W940 * H1050mm, G.W.: 130kg.

Trade terms

1. 100% T/T payment before shipment.

2. Lead time: the machine would be finished within 10 – 15 working days.

3. Shipment ways: by sea, by DHL/UPS/TNT/Fedex.

4. Sea port: Shenzhen, Shanghai or others in China.

FAQ


FAQ about SWT25080D
QuestionsAnswers
Q1. What is the payment term?A1. 100% TT payment before production/ship.
Q2. Where is the waste material?A2. Cable ties would fall down to ground directly after cutting off. Please use a box to collect them.
Q3. Does the machine have a tool gun?A3. No, it has a tool jaws. The tool gun is used to the handheld type automatic zip tie tool, like SWT25100H.
Q4. What is the delivery time?A4. Normally 10days.
