220V Electric Automatic Cable Tie System Harness Bundling / Binding Force Adjustable

China 220V Electric Automatic Cable Tie System Harness Bundling / Binding Force Adjustable supplier
220V Electric Automatic Cable Tie System Harness Bundling / Binding Force Adjustable supplier 220V Electric Automatic Cable Tie System Harness Bundling / Binding Force Adjustable supplier

Large Image :  220V Electric Automatic Cable Tie System Harness Bundling / Binding Force Adjustable

Product Details:

Place of Origin: China
Brand Name: Swift
Certification: CE
Model Number: SWT36150H

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: negotiation
Packaging Details: wooden cases
Delivery Time: 10-15days
Payment Terms: T/T
Supply Ability: 100/month
Contact Now
Detailed Product Description
Product Name: Automatic Cable Tie Machine Application: Banding Cable Wire/plastic Tube
Size Of Cable Size: W3.6 * L150mm Min Banding Dia.: Ø2.0mm
Max Banding Dia. For Wire: Ø31mm Max Banding Dia. For Tube: Ø30mm

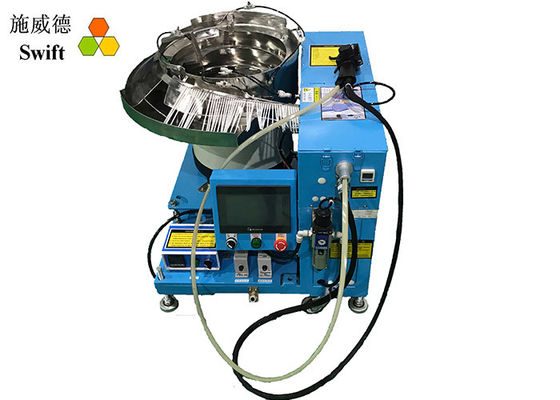

220V Electric Cable Tie Tool Engineer Harness Bundling And Binding Force Adjustable



The cable tie tool could bind all kinds of wire harness with cable ties, without hands operation. And the binding forces are adjustable.



SWT36150H advantages



1. Loose cable ties are width 3.6mm and length 150mm.



2. Once pull gun trigger, automatically wrap, pull and tighten cable ties, cut them off and collect the excess tails into a box.



3. There are 5 binding forces that are adjusted by turn a knob.



4. Automatic alarm function. The machine would alarm and stop working if have problem, and deal with it by its own.



5. With temperature control system. This function can be used when it is winter to protect cable ties toughness.



6. Bundling speed is up to 1 cable tie per second.

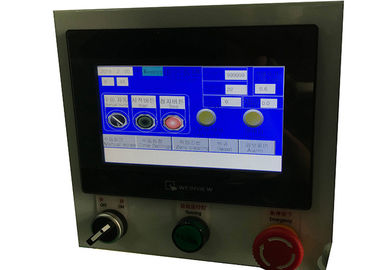

7. Touch screen: dual languages display; English/Chinese/Korean



8. The machine could be used in power supply AC220V, 50/60Hz.



SWT36150H parameters



Model SWT36150H
Description Automatic cable tie tool
Application Automatically binding objects with cable ties - tightly and quickly.
Cable tie spec W3.6 * L150mm
Cable tie features Straight without deformation, no tilt angle, tensile strength 14kg
Min bundle diameter Ø3mm
Max bundle diameter for wire Ø31mm
Max bundle diameter for tube Ø30mm
The bundle speed 1.0S
Host machine size L720 * W820 * H700mm
Cable tie gun size L271 * W116 * H74mm
Electric power AC220V, 50/60Hz
Pneumatic pressure 0.5Mpa



Applications



220V Electric Automatic Cable Tie System Harness Bundling / Binding Force Adjustable

Packing details



Total wooden cases 2pcs
Host machine/wooden case L87 * W97 * H72cm; G.W: 81kg
Vibration bowl/wooden case L74 * W62 * H100cm; G.W: 76kg
Total total 1CBM; total 154kg



Trade terms



1. Lead time: 10 – 15working days.

2. Payment: 100% TT payment before ship.

3. Price: EXW,FOB

4. Sea port: Shenzhen, Shanghai



FAQ



FAQ
Questions Answers
1. What is MOQ? 1. MOQ: 1pcs
2. Is it ok to use other brand cable ties in this machine? 2. It would cause some problems. If use other cable ties, it is better to customize one.
3. What is the warranty? 3. 12months and tech support forever.
4. Where is your factory? 4. Our factory is located in Shenzhen, China, near Shenzhen Airport.
