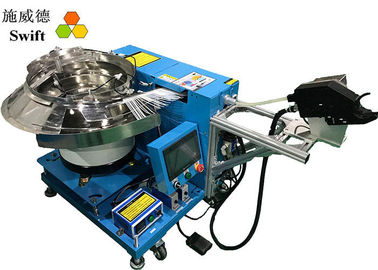

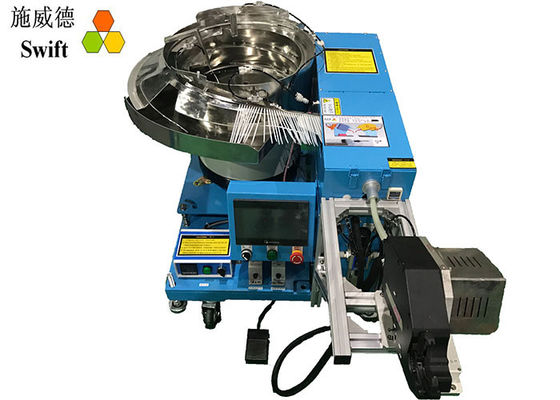

Wire Harness Bundle Automatic Cable Tie System For Bags Quick / Fast Sealing

China Wire Harness Bundle Automatic Cable Tie System For Bags Quick / Fast Sealing supplier
Wire Harness Bundle Automatic Cable Tie System For Bags Quick / Fast Sealing supplier Wire Harness Bundle Automatic Cable Tie System For Bags Quick / Fast Sealing supplier

Large Image :  Wire Harness Bundle Automatic Cable Tie System For Bags Quick / Fast Sealing

Product Details:

Place of Origin: China
Brand Name: Swift
Certification: CE
Model Number: SWT25120F

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiation
Packaging Details: wooden case
Delivery Time: 10-15days
Payment Terms: T/T
Supply Ability: 100pcs/month
Contact Now
Detailed Product Description
Name: Nylon Belt Cable Tie Machine Application: Banding Cable Wire/plastic Tube
Size Of Cable Size: W2.5 * L120mm Mix Banding Dia.: Ø2.0mm
Max Banding Dia. For Wire: Ø22mm Max Banding Dia. For Tube: Ø20mm
Operation Speed: 1S Banding Force: Adjustable

Wire Harness Bundle Automatic Cable Tie Tool For Bags Sealing Quickly And Fast



Automatically wrapping and tighten cable ties until reach the set tension force, cut excess tails off and collect them into a box.



Automatic cable tie tool advantages



1. The cable tie gun is fixed in the bench. So worker can hold items by two hands.



2. One key control – once tread the pedal, the machine start to work and bundle items with cable ties.



3. Using loose cable ties W2.5 * L120mm, vibration feeding, transferred into the gun.



4. The binding forces are adjustable.



5. Auto detecting jammed and dealing with it. If there is any cable tie jammed in the tool gun, the machine would stop running and clean the jammed cable tie, then restart again.



Technical parameters



Model SWT25120F
Description Automatic cable tie tool
Machine type A fixed cable tie gun
Application

Automatically binding objects with cable ties.

Advantages: tightly, quickly and save money

Cable tie spec W2.5 * L120mm
Cable tie features Straight without deformation, no tilt angle, tensile strength 8kg
Min bundle diameter Ø2.0mm
Max bundle diameter for wire Ø22mm
Max bundle diameter for tube Ø20mm
The bundle speed 1.0S
Host machine size L725 * W710 * H670mm
Cable tie gun size L284 * W240 * H149mm
Electric power AC220V - AC240V, 50/60Hz
Pneumatic pressure 0.5Mpa



Main purchasing process



1. Inquiry: Please send email to us, or call us by phone/Skype/WhatsApp.



2. Confirm details:

1). Cable ties specifications, quality, shape. It is better to have a picture to look.

2). What is your product? This will help salesmen to give you professional suggestion about the model.



3. Quotation: Competitive price is offered and accepted.



4. Proforma invoice is offered to confirm main details.



5. Receive the payment and start to make machine.



7. Lead time is 10 – 15 business days and machine will be shipped as contracted term.



8. Confirm customers receive machines.



9. Support re-order.



Trade terms



Payment 100% T/T payment before shipment
Price EXW,FOB
Delivery time

10 – 15 business days;

3 – 5 business days for machines in stock.

Sea port Shenzhen
By express DHL/UPS/FEDEX/TNT
Packing In wooden cases



Wire Harness Bundle Automatic Cable Tie System For Bags Quick / Fast Sealing



Wire Harness Bundle Automatic Cable Tie System For Bags Quick / Fast Sealing
