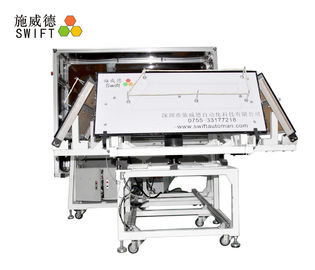

Bundling Zip Ties Robotic Automatic Cable Tie System For Assembly Line
Automatic cable tie system! Professional manufacturer! 18 year experience in automation industry! The whole operation takes only 0.7s, (Not including auxiliary time),One machine can save 3-4 operators
SWT25120H-RT1200 technical parameters
| 1 | Item | Description | Value |
| Brand | SWIFT | None | |
| 2 | Model | SWT25120H-RT1200 | None |
| Be suitable for full automation line | None | ||
| 3 | 4axes | X/Y/Z/R Travel | X:1200; Y:550; Z:40; R: 0 - 180° |
|
4
|
Working zone numbers | 2* cable tie gun number | 2 |
|
5
|
Cable tie gun | Cable tie gun number | 1 |
| 6 | Fixture board | Size | L1400 * H610mm |
| 7 | Cable ties | Model | T25100 |
| Width | 2.5mm | ||
| Length | 120mm | ||
| Thicker | 1.1mm | ||
|
8
|
Operation speed | Bundle one cable tie | 0.7S |
| 9 |
Max banding Dia.
|
For wire | Ø 22mm |
| For tube | Ø 20mm | ||
| 10 | Min banding Dia. | For tube / wire | Ø 2.0mm |
| 11 | The feeding hose | Length | 2.5m |
| 12 | The bending forces | Be adjusted | |
| 13 | Voltage | AC110V, 50 / 60Hz | |
| US plug | |||
| 14 | The gun V. | DC24V (switch automatically) | |
| 15 | Pneumatic pressure | 5kg/cm² | |
Features
1. 4 axes, X, Y, Z + Rotation.
2. X/Y/Z/R Travel: X:1200; Y:550; Z:40; R: 0 - 180°.
3. Two working fields. One is for worker to load wires and test the connecting. The other one is for the robot and cable gun to bundle wires.
4. Be suitable for bundle 1 – 10 cable ties in wires.
5. Automatic detecting if cable ties are bound successfully. If fail, the root would deal with the issue and repeat cable tie bundling.
6. The excess tail collecting system. The waste material would be collected into a box.
7. With wheels.
Service
1. Free samples: we could offer free cable ties for your check.
2. Warranty: 12month and tech support forever.
3. Payment term: TT payment/negotiate
4. Delivery time: 15working days.
